- Stainless steel construction
- Hermetically sealed
- IP68 protection
- Suitable for compression application
- OIML C3 approved
- Ex ia IIC T4 approved (Option)
Options:
- Accessories Set
Applications:
- Hopper and Tank scales
- Truck scales

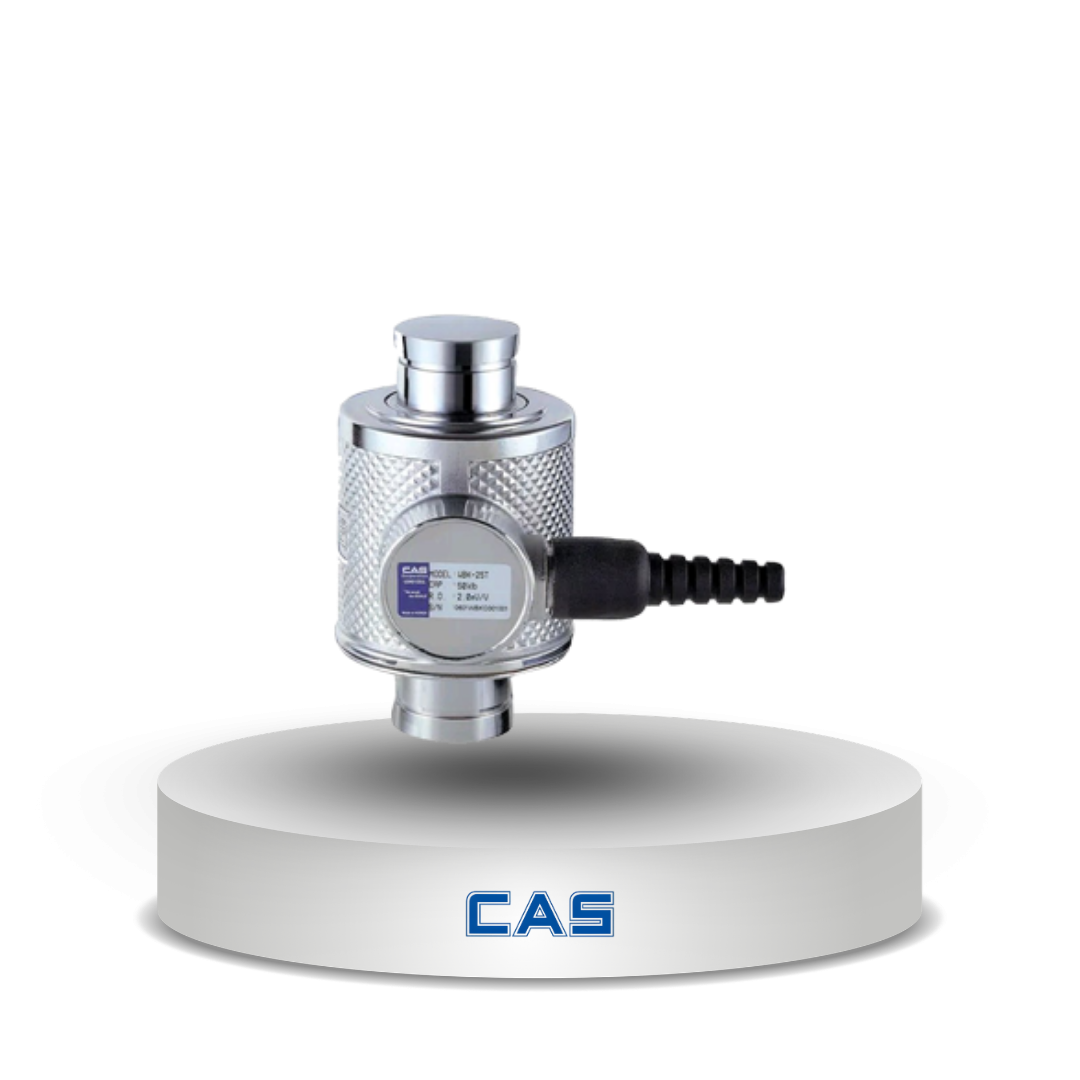

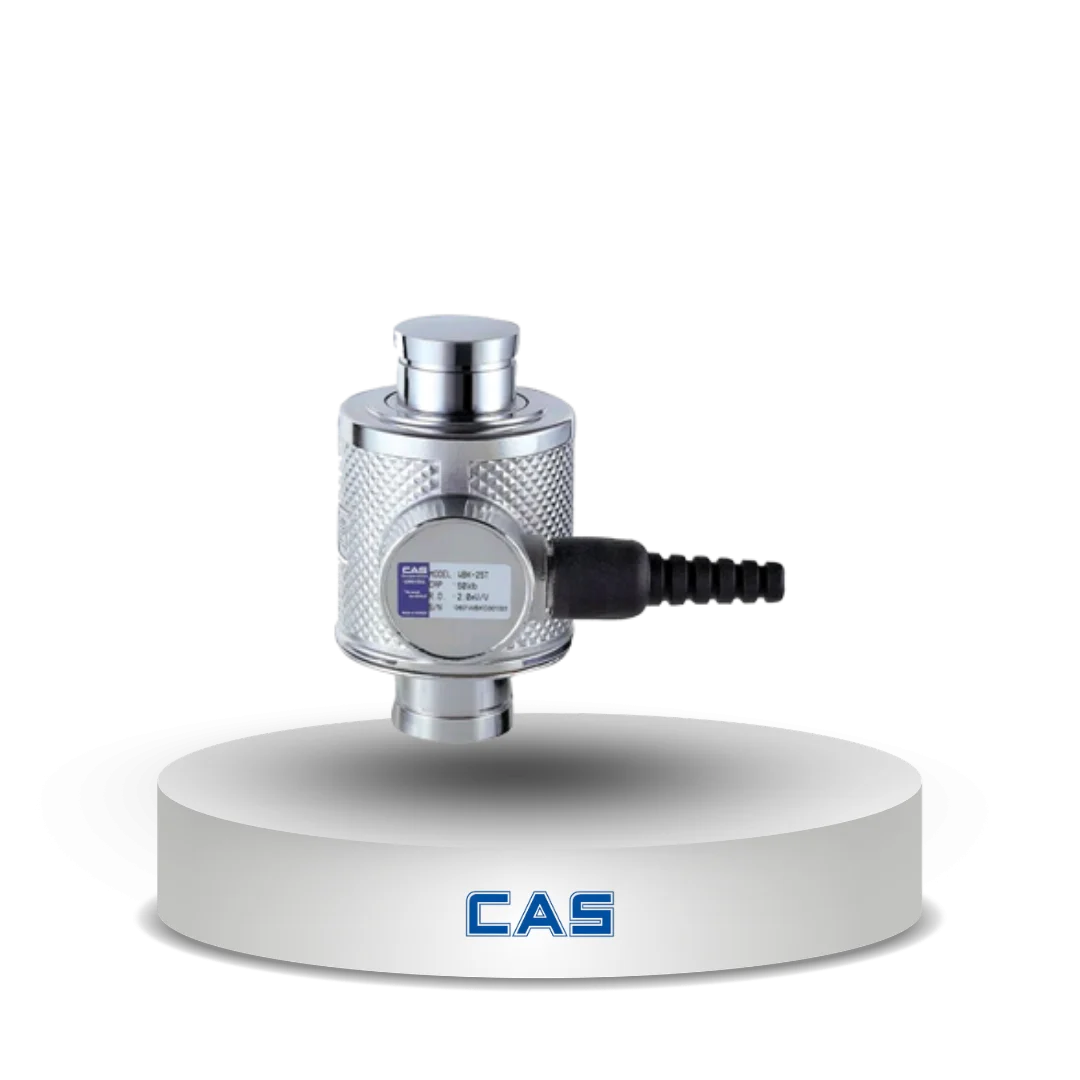

Load Cell WBK-D
Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol dibawah atau melalui:
Telepon: 0813-134-9146
Email: sales@timbanganindonesia.com
| Capacity (R.L.) | tf | 10, 20, 25, 30, 50, 100 | ||
|---|---|---|---|---|
| Rated output(R.O.) Zero balance |
mV / V mV / V |
2.0 ± 0.005 0.0 ± 0.020 |
||
| Accuracy Class | – | D3 | C3 | |
| Non-linearity Hysteresis Combined Error Repeatability Creep for 30min Return for 30min Resolution Dision |
% R.O. % R.O. % R.O. % R.O. % R.O. % R.O. – mV/ V |
≤ 0.03 ≤ 0.03 ≤ 0.03 ≤ 0.02 ≤ 0.03 ≤ 0.03 ≤ 1/3000 0.00067 |
≤ 0.02 ≤ 0.02 ≤ 0.02 ≤ 0.01 ≤ 0.017 ≤ 0.017 ≤ 1/5000 0.0004 |
|
| Temperature effection | -Zero Value -Output value |
%/10°C %/10°C |
≤ 0.03 ≤ 0.03 |
≤ 0.014 ≤ 0.011 |
| Excitation | -Recommended -Maximum |
V V |
10 15 |
|
| Resistance | -Input -Output -Insulation |
Ω Ω MΩ |
350 ± 3.5 350 ± 3.5 >2000 |
|
| Comensated Temperature Range Operating Temperature Range | °C °C |
-10 to +40 -40 to +70 |
||
| Material & Plate | – | Stainless steel | ||
| Cable specification | – | Ø8 x 4P x 10M & Ø8 x 4P x 25M (P.V.C) | ||
| Platform size | – | Ø8 x 6P x 12M (Urethane) | ||
| Safety overload | % R.L | 150% | ||
