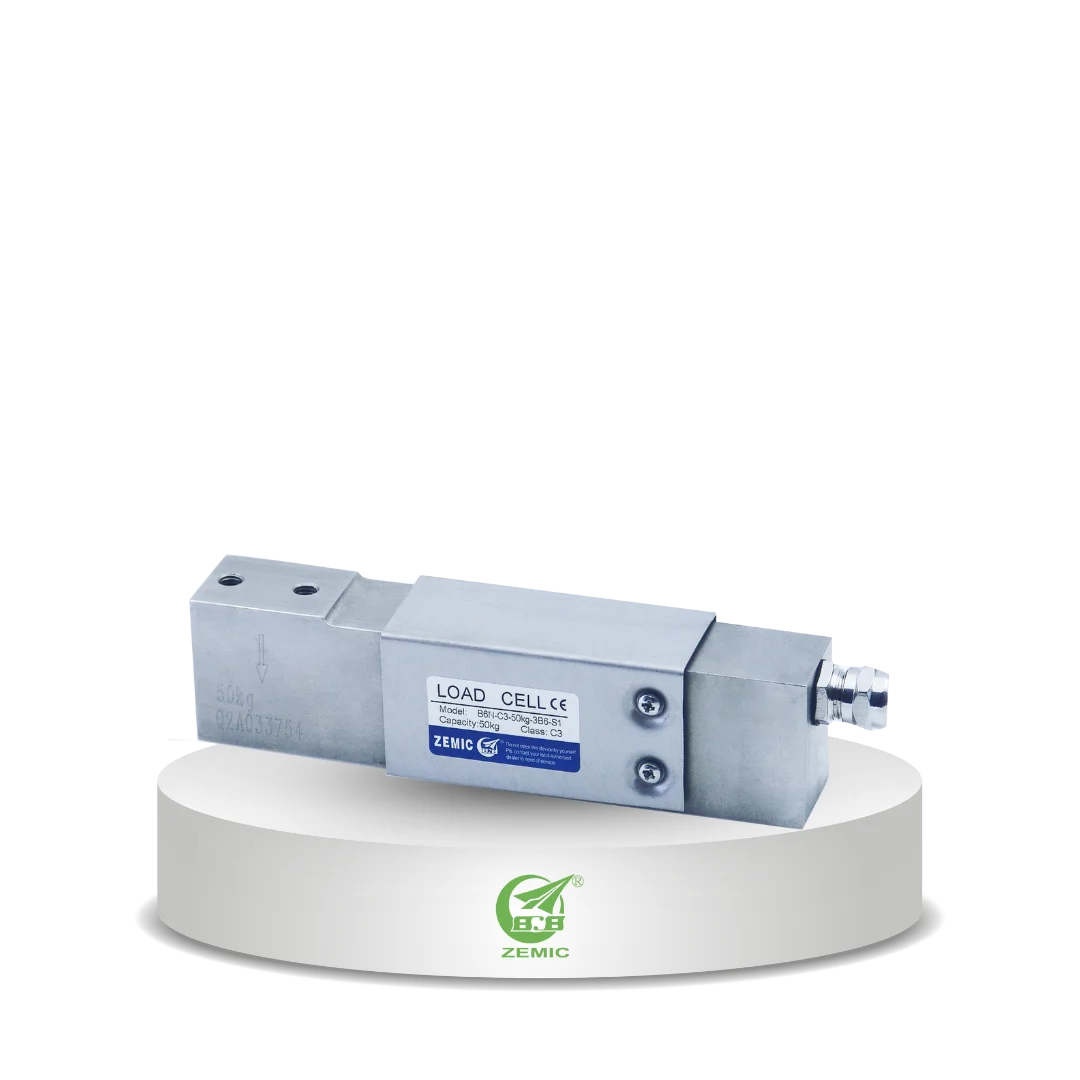

B6N stainless steel single point load cell, OIML approved (8kg-200kg)

• Stainless steel IP67 single point load cell.
• Bending beam.
• Suitable for weighing equipment like platform and belt scales.
• Recommended max. platform size: 400 x 400 mm.

Technical Specifications B6N
Accuracy Class OIML R60 C3 OIML R60 C4
Output Sensitivity ( = FS ) mV/V 2.0 ± 0.2
Maximum Capacity ( Emax ) kg 8, 10, 15, 20, 30, 50,
75, 100, 150, 200
8, 10, 15,
20, 30
Max. Number of Load Cell Intervals nLC 3000 4000
Ratio of min. LC Verification Interval Y = Emax / vmin 9000 15000
Combined Error %FS ≤± 0.023 ≤± 0.018
Creep Error (30 minutes) %FS ≤± 0.016 ≤± 0.012
Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.015 ≤± 0.010
Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.011 ≤± 0.009
Zero Balance %FS ≤± 1.5
Safe Overload %FS 150
Ultimate Overload %FS 300
Eccentric Loading Error %Ld/cm ± 0.002
Excitation, Recommended Voltage V 5 ~ 12
Excitation, Maximum Voltage V 18
Input Resistance Ω 384 ± 4
Output Resistance Ω 350 ± 3.5
Insulation Resistance (50V) MΩ ≥5000
Compensated Temperature °C -10 ~ +40
Operating Temperature °C -35 ~ +65
Storage Temperature °C -40 ~ +70
Load Cell Weight kg ~1.1
Element Material Stainless Steel
Ingress Protection (acc. to EN 60529) IP67
Recommended Torque on Fixation Bolts Nm M6: 10
ATEX Classification (optional) II 1G Ex ia IIC T4 Ga II 1D Ex ia IIIC T 200 135°C Da II 3G Ex ic IIC T4 Gc
