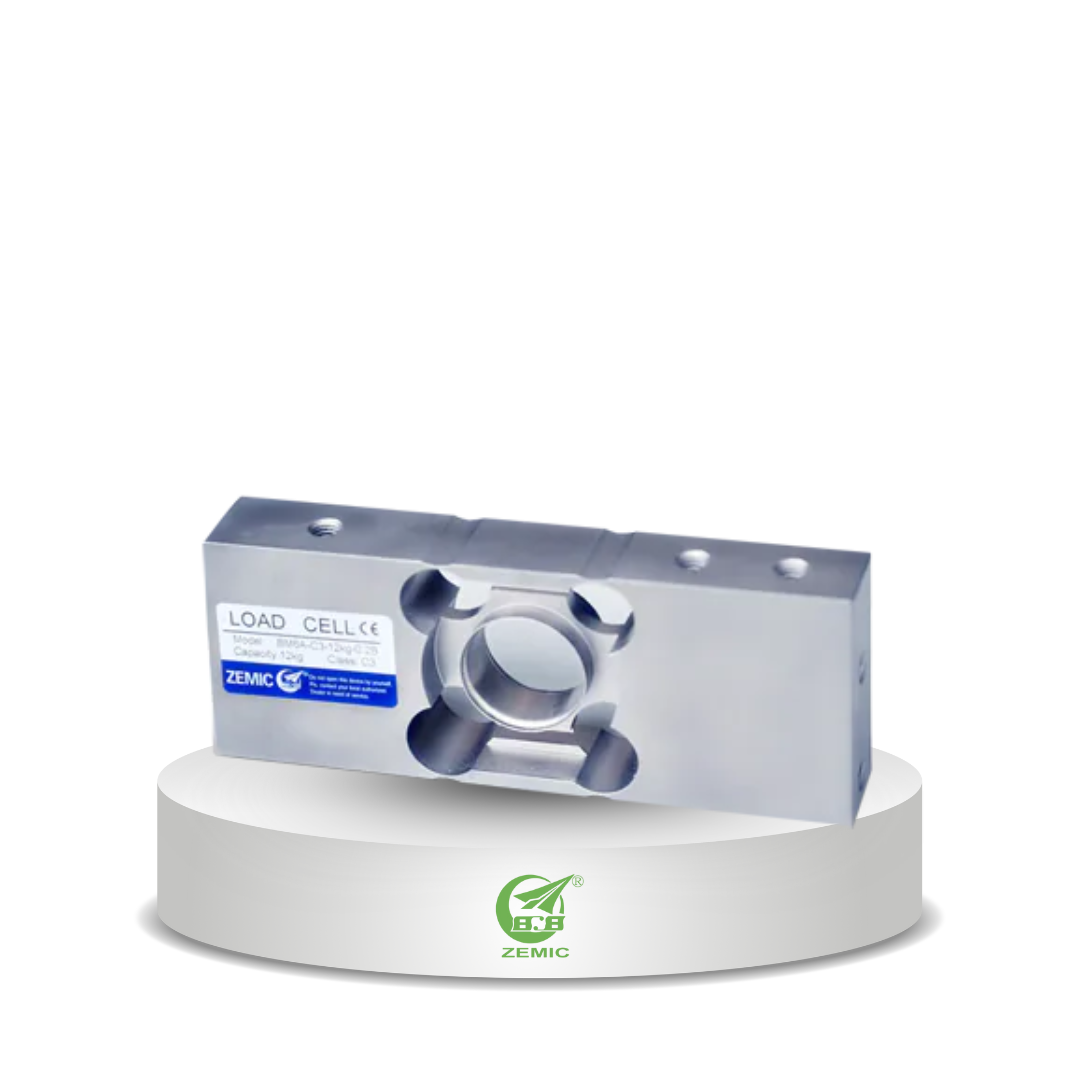

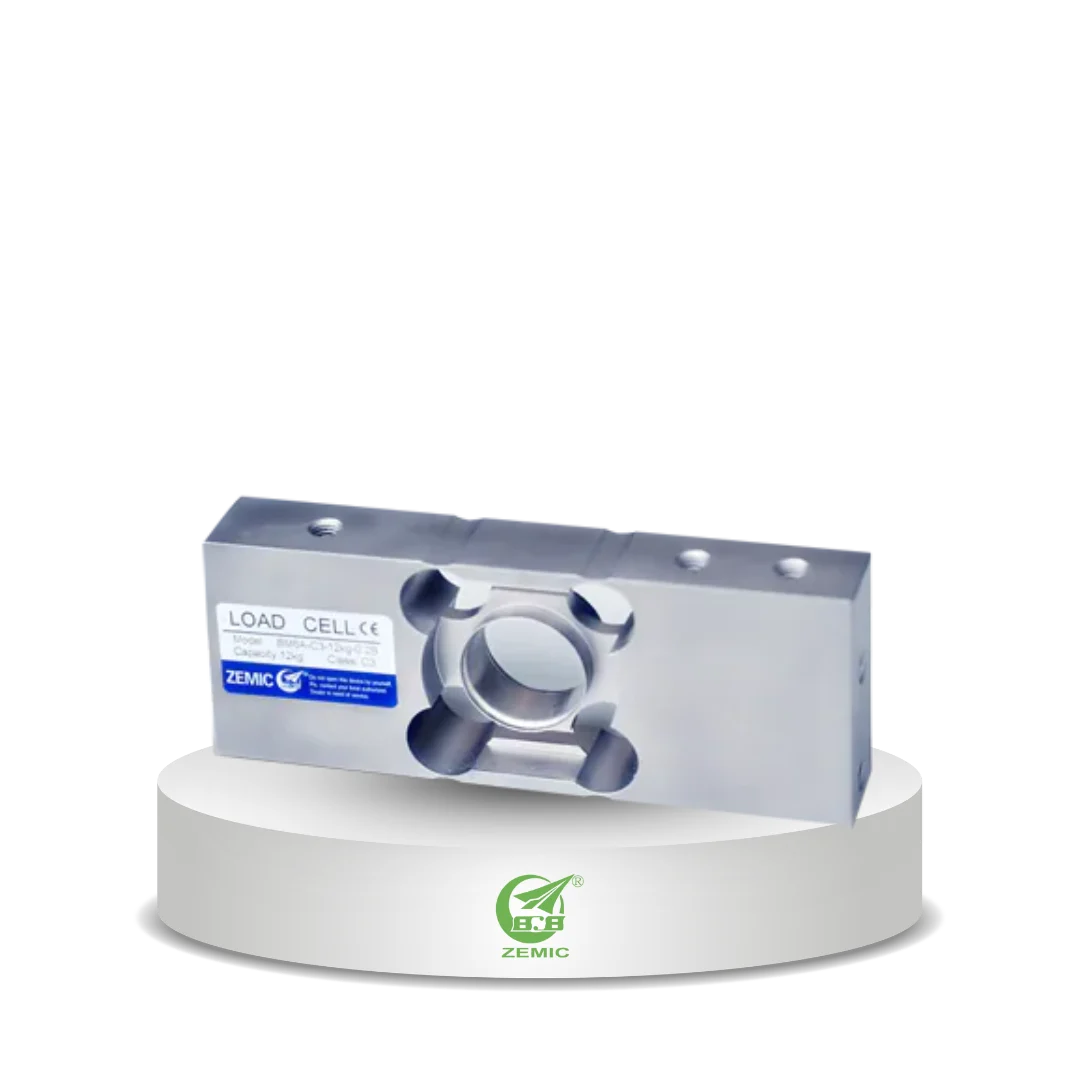

BM6A stainless steel single point load cell, OIML approved (6kg-60kg)

• Stainless steel IP68 single point load cell
• Suitable for platform, belt scales
• and other weighing devices
• Hermetically sealed
• Recommended maximum platform size: 350 × 350 mm

Available Models
Capacity Accuracy Full Article Description

• 6kg C3 BM6A-C3-6kg-6B6
• 12kg C3 BM6A-C3-12kg-6B6
• 30kg C3 BM6A-C3-30kg-6B6
• 60kg C3 BM6A-C3-60kg-6B6

Technical Specifications BM6A
Accuracy Class OIML R60 C3
Output Sensitivity ( = FS ) mV/V 2.0 ± 0.2
Maximum Capacity ( Emax ) kg 6, 12, 30, 60
Max. Number of Load Cell Intervals nLC 3000
Ratio of min. LC Verification Interval Y = Emax / vmin 10000
Combined Error %FS ≤± 0.023
Creep Error (30 minutes) %FS ≤± 0.016
Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.015
Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.011
Zero Balance %FS ≤± 1.5
Safe Overload %FS 150
Ultimate Overload %FS 300
Maximum Deflection mm 6 – 12kg: ~0.17 30kg: 0.13 60kg: 0.12
Eccentric Loading Error %Ld/cm ± 0.002
Excitation, Recommended Voltage V 5 ~ 12
Excitation, Maximum Voltage V 18
Input Resistance Ω 400 ± 20
Output Resistance Ω 351 ± 2
Insulation Resistance (50V) MΩ ≥5000
Compensated Temperature °C -10 ~ + 40
Operating Temperature °C -35 ~ + 65
Storage Temperature °C -40 ~ + 70
Load Cell Weight kg ~ 1.2
Element Material Stainless Steel
Ingress Protection (acc. to EN 60529) IP68
Recommended Torque on Fixation Bolts Nm M6: 10
ATEX Classification (optional) II 1G Ex ia IIC T4 Ga II 1D Ex ia IIIC T 200 135°C Da II 3G Ex ic IIC T4 Gc
