| Tension and compression load cell | Hermetically sealed |
| Stainless steel construction | |

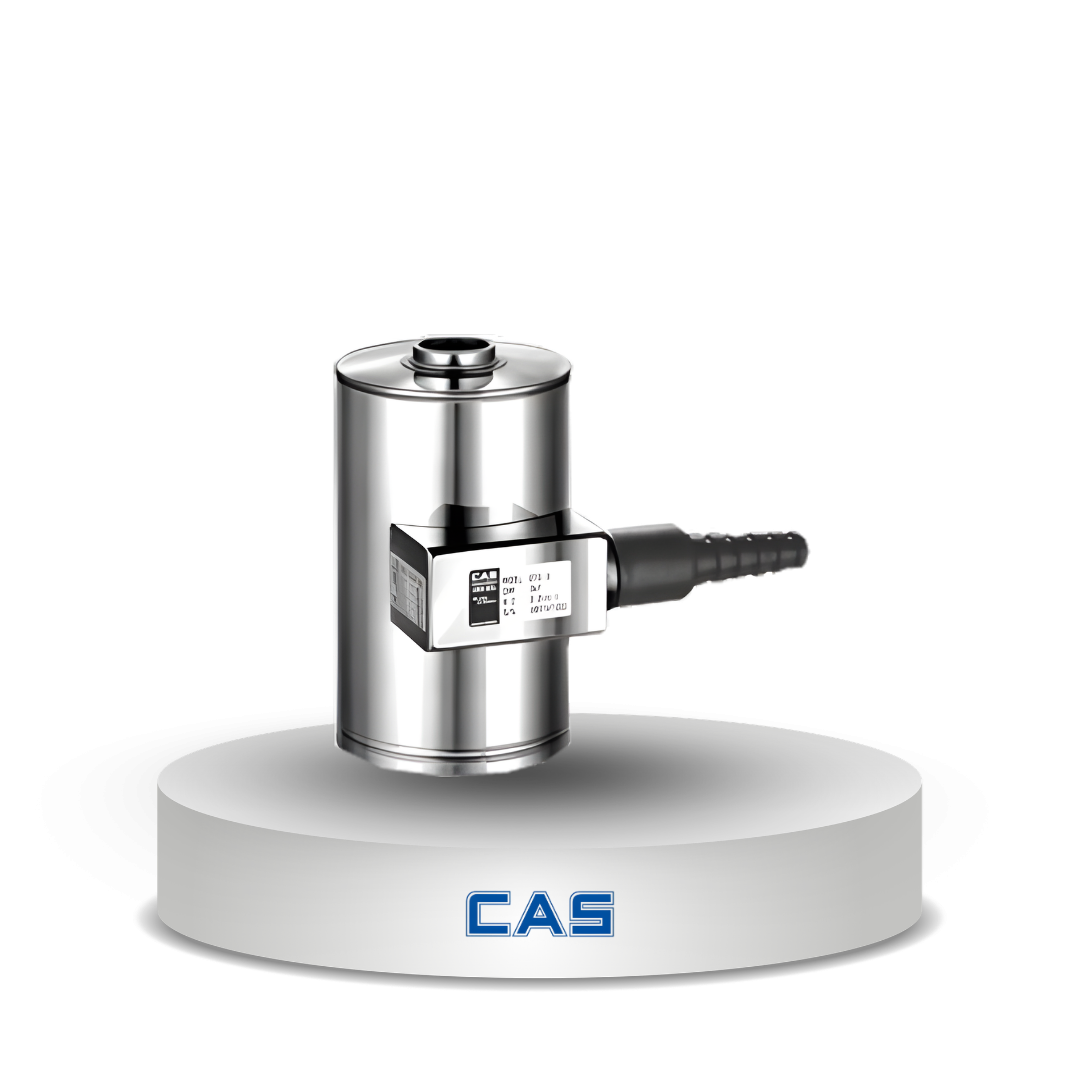

Compression Tension Load CTS
Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol dibawah atau melalui:
Telepon: 0813-134-9146
Email: sales@timbanganindonesia.com
| Max. Capacity | kgf | 500, 1tf, 2tf, 3tf, 5tf | |
| Rated Output | mV/V | 3.0 ± 0.003 | |
| Zero Balance | mV/V | 0 ± 0.03 | |
| Accuracy Class | |||
| Combined Error | % | 0.02 | 0.05 |
| Repeatability | % | 0.01 | 0.02 |
| Creep for 30 min | % | 0.03 | 0.03 |
| Temperature Effect on : Zero Value Output Value |
% / 10°C % / 10°C |
0.03 0.03 |
0.03 0.03 |
| Excitation : Recommended Maximum |
V V |
10 15 |
|
| Resistance : Input Output Insulation |
W W MW |
350 ± 3.5 350 ± 3.5 ≥ 2.000 |
|
| Compensated Temperature Range | °C | – 10 ~ 40 | |
| Operating Temperature Range | °C | – 30 ~ 8 | |
