- Robust design and easy installation
- Strong against shock or side force
- Protection class IP67

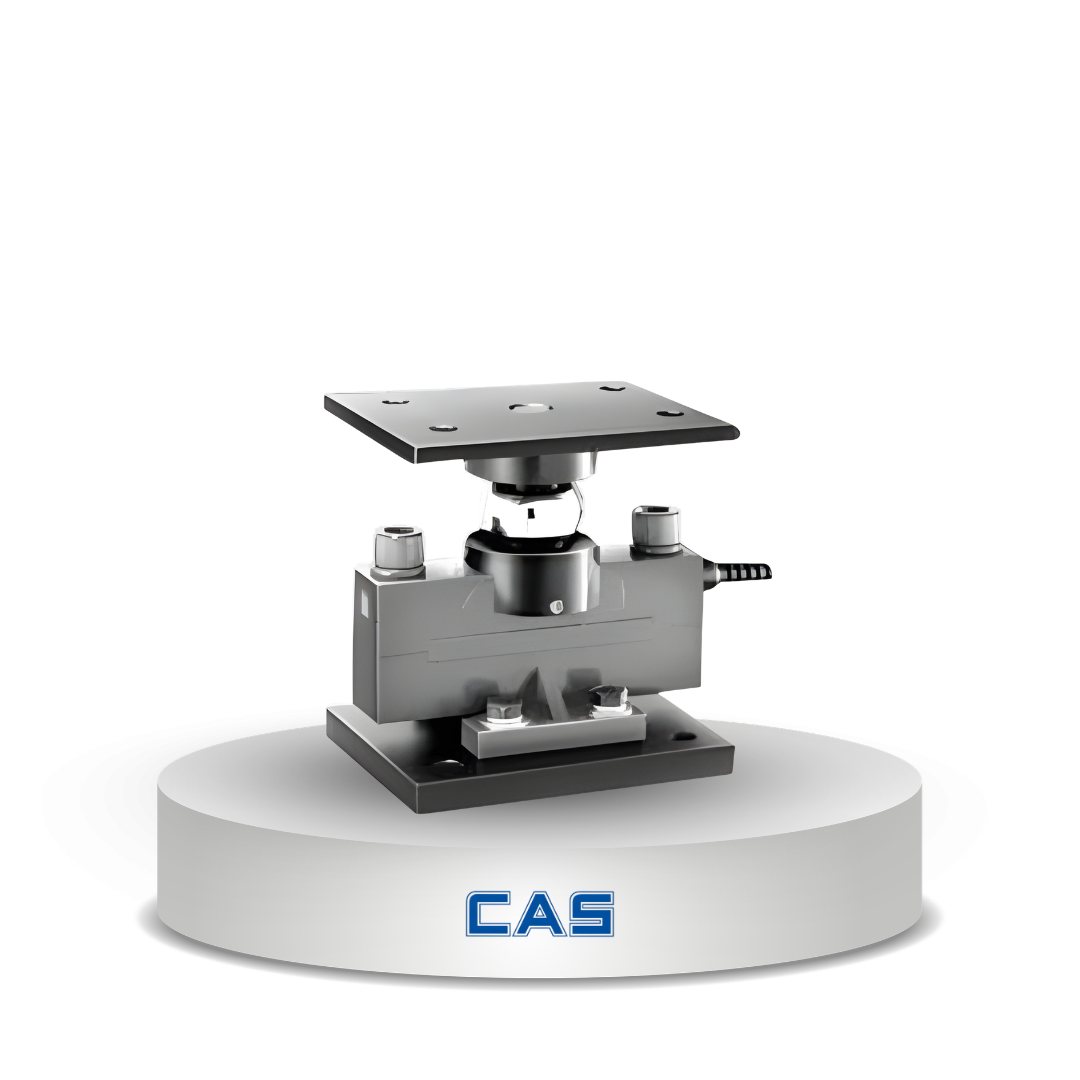

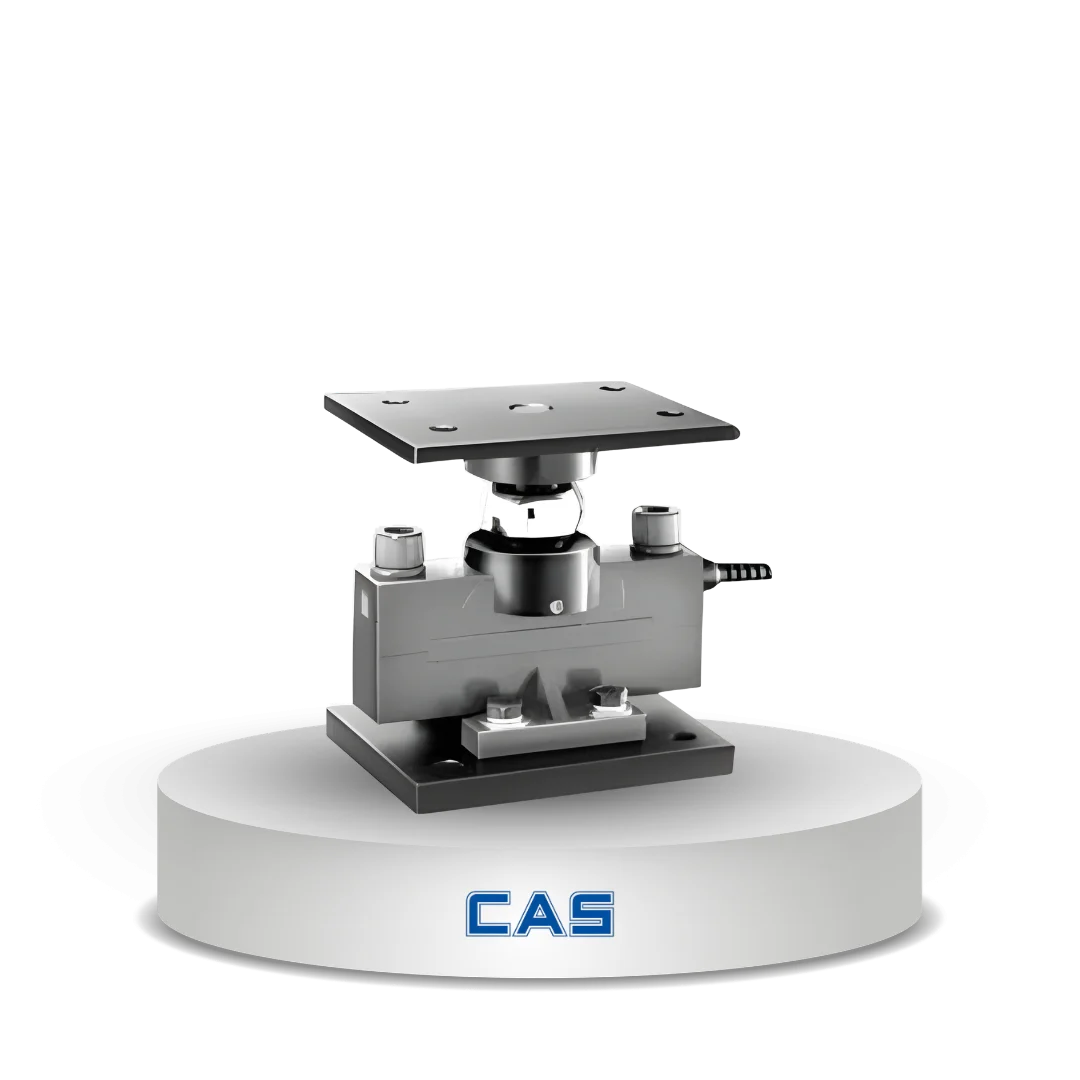

Double Ended Beam Load Cell DSB-B
Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol dibawah atau melalui:
Telepon: 0813-134-9146
Email: sales@timbanganindonesia.com
|
Max. capacity
|
tf
|
10, 25, 30
|
|---|---|---|
| Rated output Zero balance |
mV/V mV/V |
2.0 ± 0.004 0 ± 0.02 |
| Combined error Repeatability Creep for 30 min Temperature effect on Zero Value Output value |
% % % %/10°C |
0.03 0.02 0.03 0.03 |
| Excitation Recommended Maximum Resistance Input Output Insulation |
V V Ω |
10 15 800 ± 40 |
| Compensated temperature range Operating temperature range |
°C °C |
– 10 to + 40 – 20 to + 80 |
