| Hermetically sealed | High reliability against fatigue and side force |

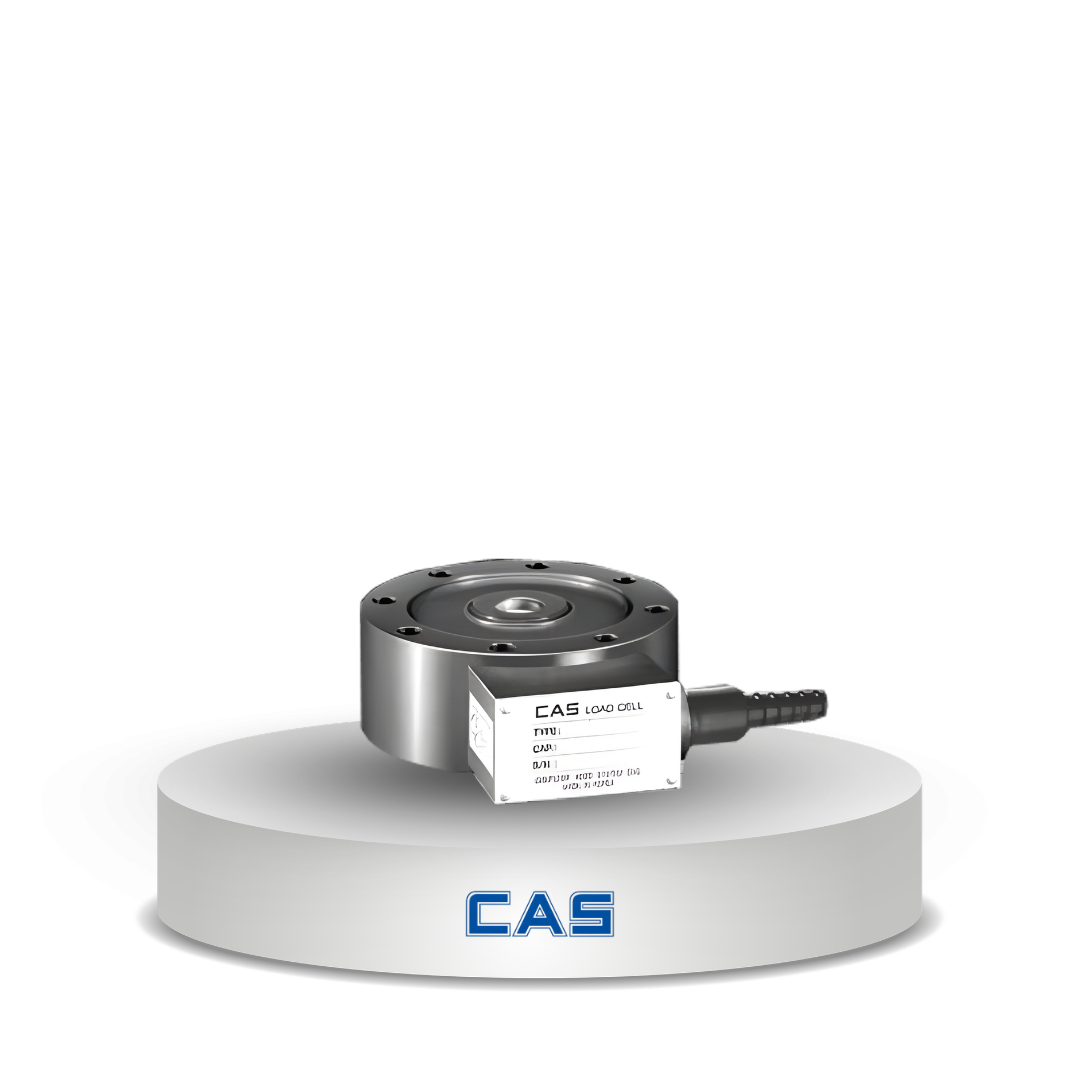

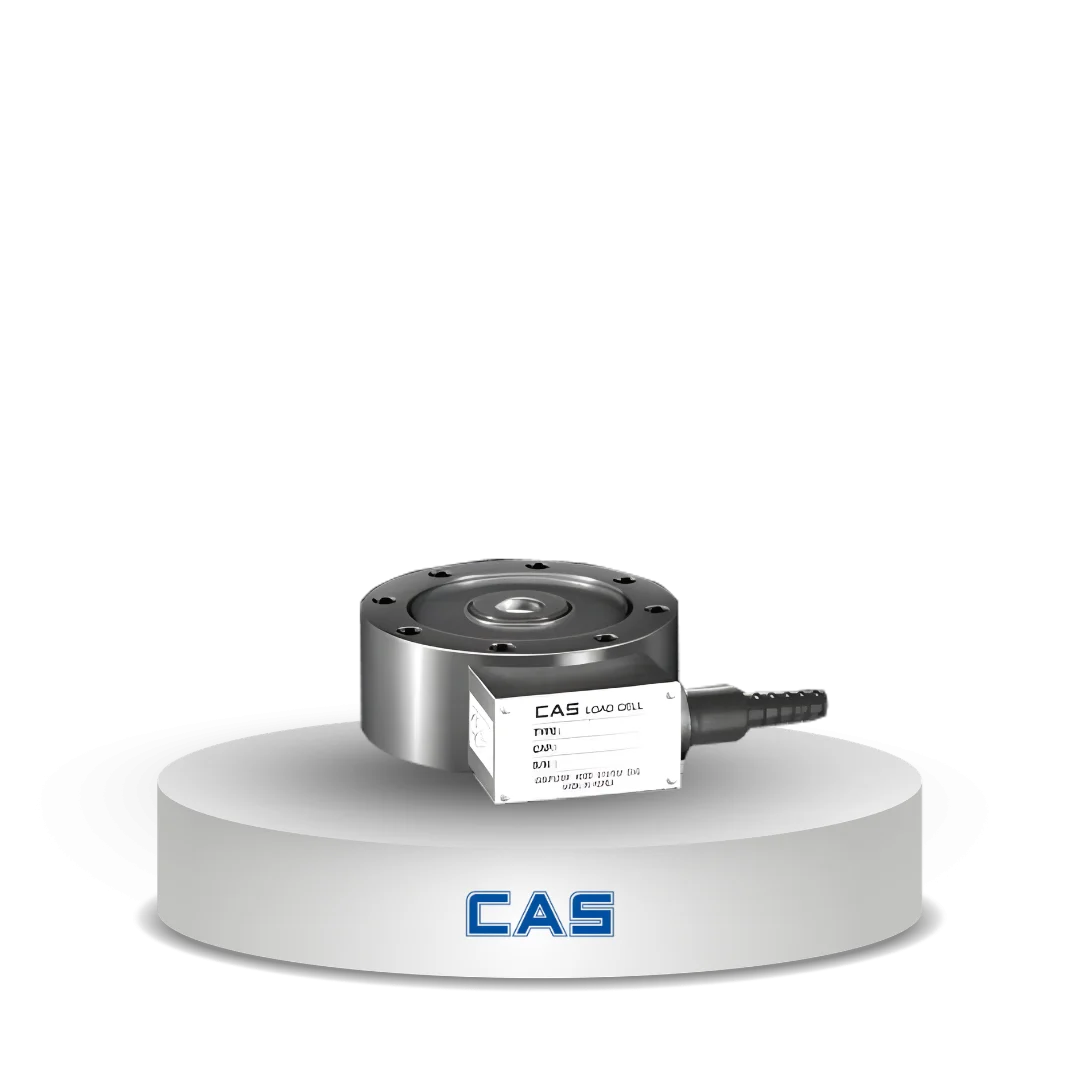

Pancake Load Cell LS
Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol dibawah atau melalui:
Telepon: 0813-134-9146
Email: sales@timbanganindonesia.com
| Max. Capacity | tf | 1, 2, 3, 5, 10, 20, 30, 50 (LSU), 100 (LSU), 200 (LSU) | |
| Rated Output | mV/V | 2.0 ± 0.005 | |
| Zero Balance | mV/V | 0 ± 0.02 | |
| Accuracy Class | A | B | |
| Combined Error | % | 0.02 | 0.05 |
| Repeatability | % | 0.01 | 0.02 |
| Creep for 30 min | % | 0.03 | 0.03 |
| Temperature Effect on : Zero Value Output Value |
% / 10°C % / 10°C |
0.03 0.03 |
0.03 0.03 |
| Excitation : Recommended Maximum |
V V |
10 15 |
|
| Resistance : Input Output Insulation |
Ω Ω MΩ |
350 ± 3.5 350 ± 3.5 ≥ 2.000 |
|
| Compensated Temperature Range | °C | – 10 ~ 40 | |
| Operating Temperature Range | °C | – 20 ~ 80 | |
