Deskripsi

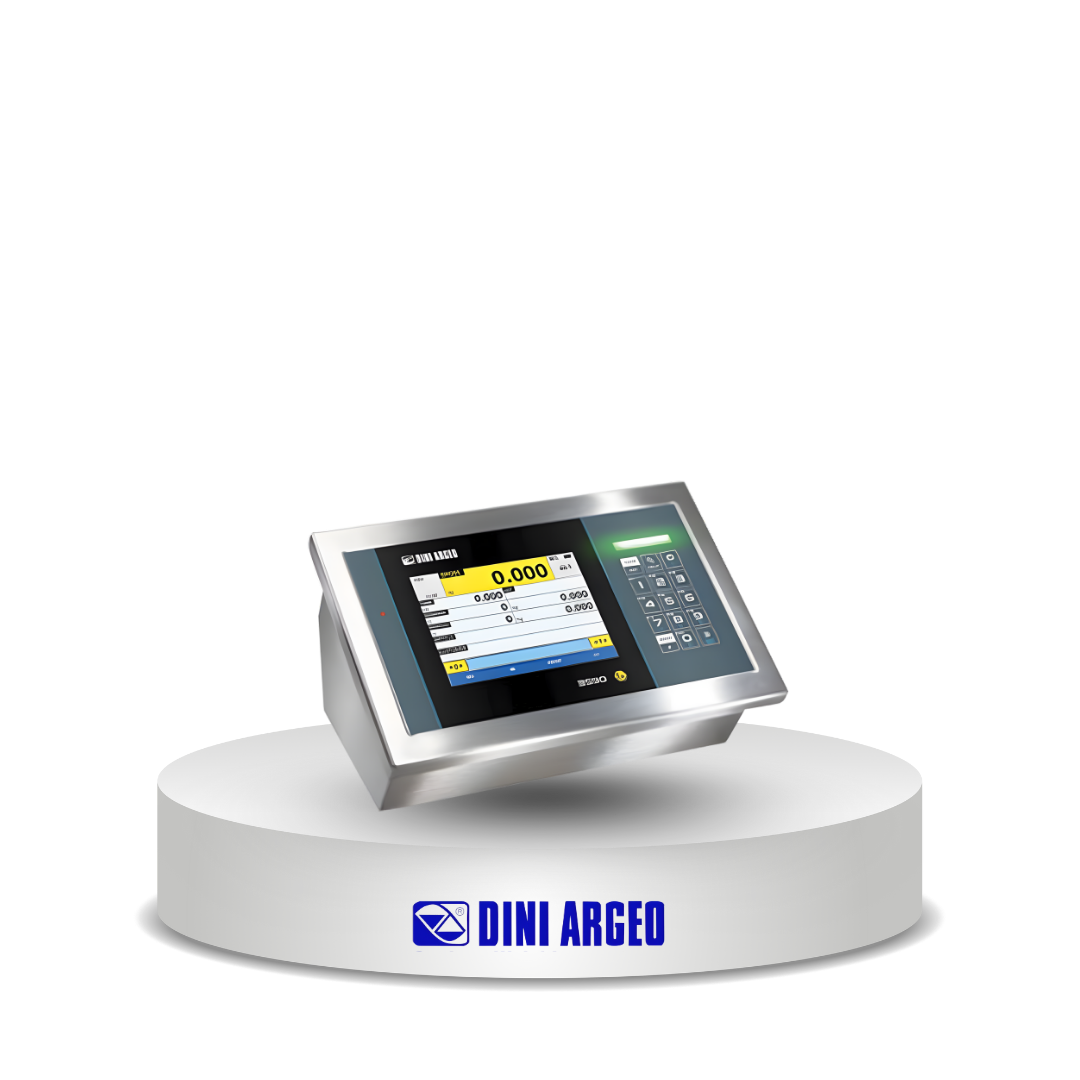

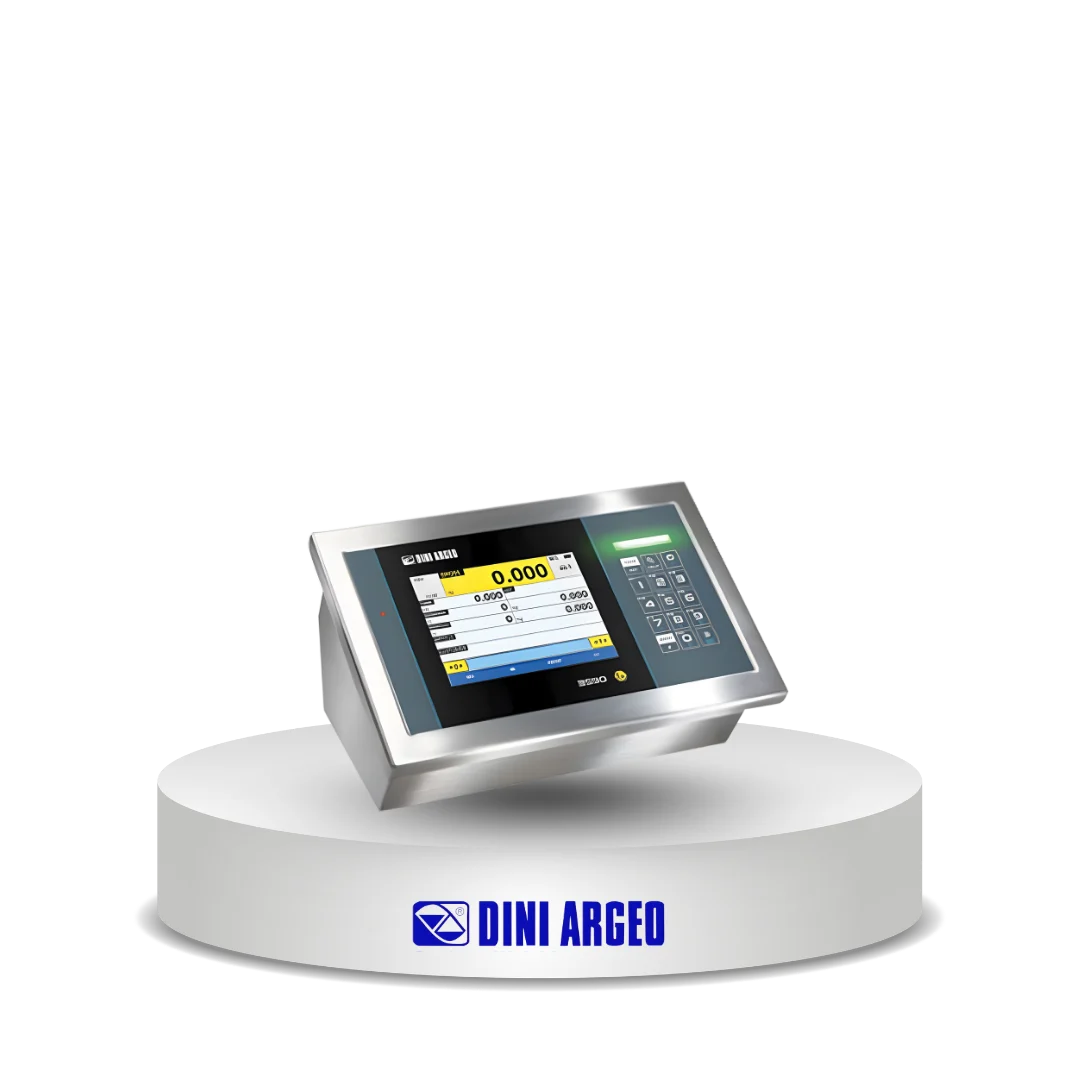

Indikator Timbangan DINI ARGEO 3590EGT-IECEX3GD

Indikator berat dengan tampilan layar sentuh besar, untuk zona berbahaya ATEX 2 & 22.

5,7′ colour touch screen display.
Multilanguage software.
15-key alphanumerical waterproof keyboard.
3-way control light.
Selectable QWERTY, AZERTY or QWERTZ keyboard integrated in the touch screen.
Stainless steel waterproof enclosure, with new IP68 protection system.
Dimensions: 280x143x185mm.
Suitable for use on the table.
Real time clock and permanent data storage.
Alibi memory as standard, integrated on the motherboard.
Slot for built-in micro SD to record the configuration, logos, and customized screens (upon request).
Functions available with DINITOOLS utility :
- 1. Configuration, data entry and print formatting.
  2. Recording and filing of all the information on PC.
  3. Complete retrieval of the configuration.
  4. Instrument calibration with numeric values.
  5. Customization of the screens.
24-bit A/D converter, 4 channels, up to 3200 conv./sec. with automatic frequency selection and up to 8 signal linearisation points.
4 independent analogue channels for weight reading (up to 2 in E-AF03 version).
Connection with up to 16 analogue load cells of 350 Ohm (45 load cells of 1000 Ohm).
Up to 10.000e OIML or multi-range 3 x 3000e @ 0,3 µV/d CE-M legal for trade.
Up to 1.000.000 displayable divisions for internal factory use, with internal resolution up to 3.000.000 points.
Connectable to printers and labellers with free programming of the printout formats.
Power supply from 110-240Vac line or 12-24 Vdc Max. 25.2W
