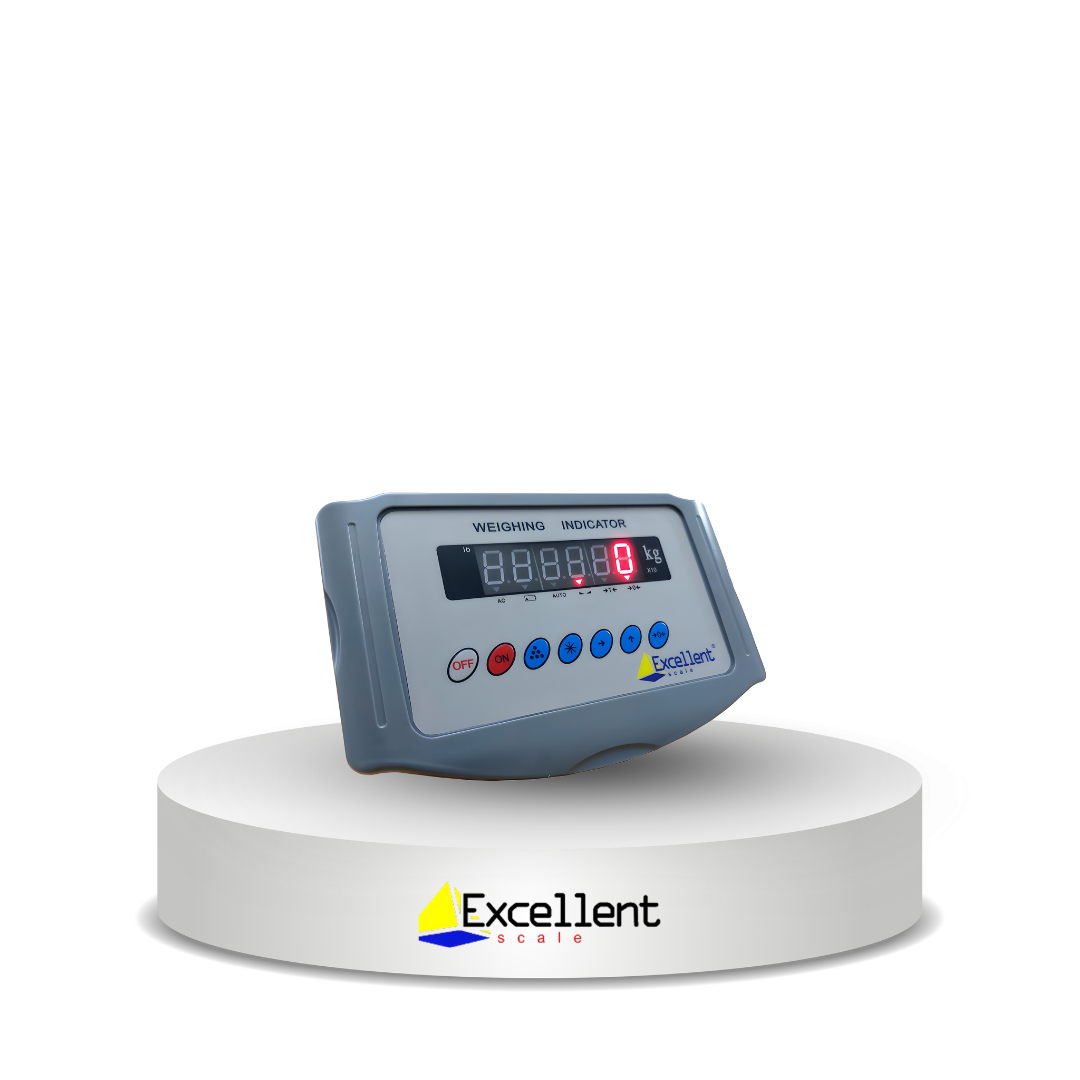

WEIGHING INDICATOR XK315-A1 ADOPTS FAST SPEED, HIGH PRECISION Σ-Δ A/D CONVERSION TECHNOLOGY, AND SPECIAL ANTI- VIBRATION SOFTWARE TECHNOLOGY WIDELY APPLIED IN ELECTRONIC ANIMAL WEIGHING BENCH SCALE. FLOOR SCALE, MECHANIC – ELECTRONIC CONVERSION SCALE (HYBRID SCALE), AND SO ON. WEIGHING SYSTEM EQUIPPED WITH 1-4 AT 350 онM LOAD CELL

-SIMPLE OPERATION

-KEYBOARD CALIBRATION AND CONFIGURATION

-WEIGHING UP TO 1:15,000 DIVISIONS

– EXCITATION VOLTAGE: DC 5V; UP TO 4-3500 LOAD CELLS CAN BE USED

– MANUAL OR AUTOMATIC MEMORY ACCUMULATION FACILITY

– HIGH RESOLUTION (×10) DISPLAY

-SELECTABLE DIGITAL FILTERING

-SELECTABLE AUTOMATIC POWER OFF

-6-BIT DISPLAY LED WITH RED COLOR

-SELECTABLE DISPLAY RESOLUTION: 1/2/5/0.1/0.2/0.5/0.01/0.02/ 0.05/0.001/0.002/0.005/10/20/50/100/200/500/0.10/0.20/ 0.50/0.010/0.020/0.050

RS-232C THE INTERFACE, OPTIONAL RS-485 INTERFACE 1200/2400/ 4800/9600 BAUD RATE CONTINUOUS ASCII DATA OUTPUT (CAN CONNECT WITH PC, SCOREBOARD AND TICKET PRINTER)

-OPTIONAL TICKET PRINTER CK

OPTIONAL SCORE BOARD (MODEL RS)

-OPTIONAL SOFTWARE WEIGH MANAGEMENT “GENWEIGH” FOR PC

-EXTERNAL POWER SUPPLY: 230V (115V) AC. INTERNAL RECHARGEABLE 6V/4AH DC BATTERY

-OPERATING TEMPERATURE: 0°C-+40°C

-STORAGE TEMPERATURE: -25°C +55°C

-RELATIVE HUMIDITY: ≤ 85% NON-CONDENSING
