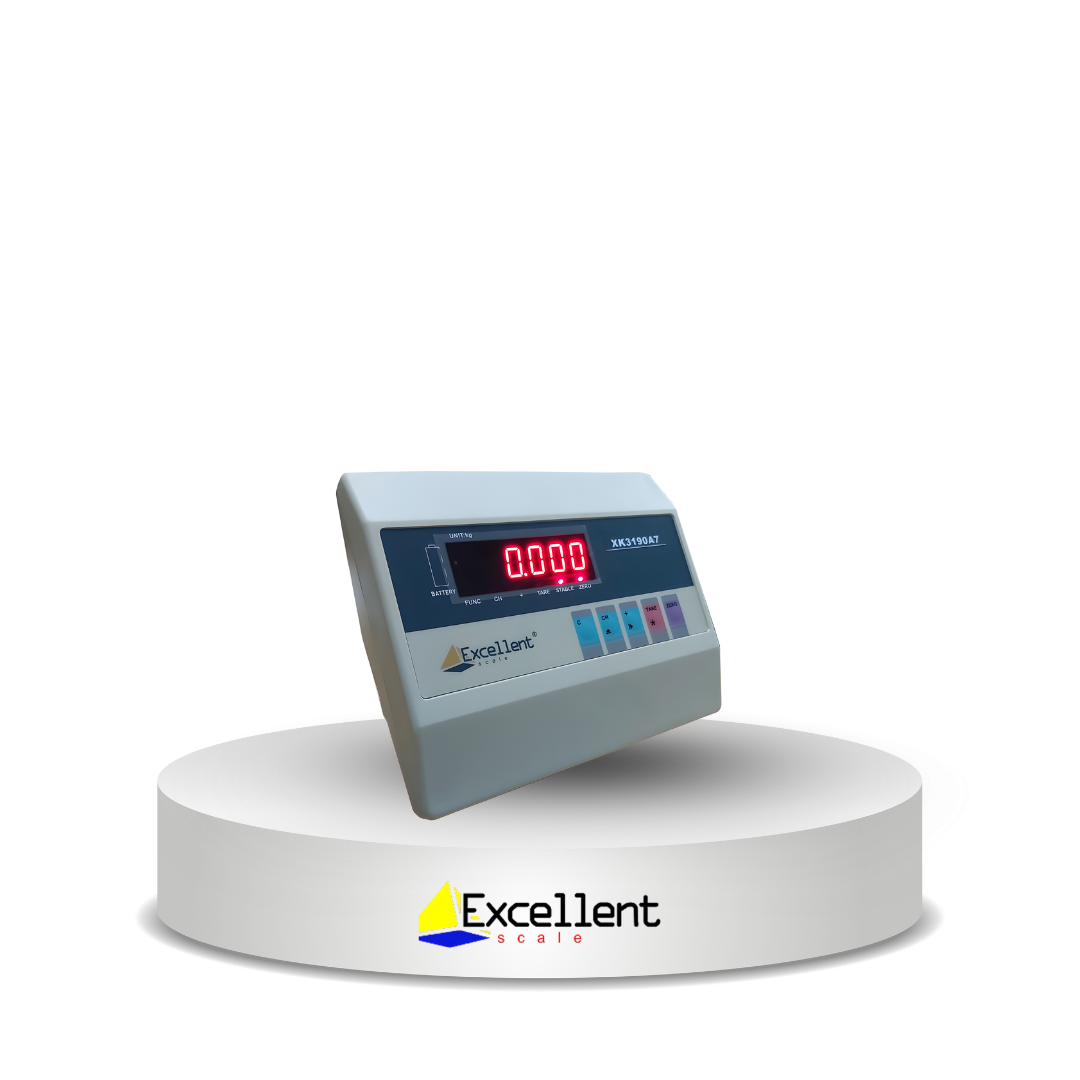

INDICATOR A7 BUILT-IN LOAD CELL AND HOOK FOR LINK WITH MECHANIC SCALE TO BE CONVERSION MECHANIC- ELECTRONIC SCALE (HYBRID SCALE) THERE ARE 3 CAPACIT OF BUILT-IN LOAD CELL: celiant

-40KG CAN USE FOR CAPACITY 150KG-300KG

-60KG CAN USE FOR CAPACITY 300KG-500KG

-120KG CAN USE FOR CAPACITY 600KG-1000KG

– HIGH PRECISON A/D CONVERSION WITH MAX. EXTERNAL COUNTS 15000

CALL AND DISPLAY INNER CODE TO REPLACE WEIGHT OBSERVING AND ANALYSIS TOLERANCE

-SET-UP ZERO TRACKING RANGE, ZERO (AUTO/MANUAL) RANGE AND ZERO SPEED INDICATING FOR BATTERY VOLUME OR STATUS

– PROTECTION FOR LOW BATTERY

-AC/DC POWER SUPPLY WITH BUILT-IN RECHARGEABLE 12V/2.8AH BATTERY

-A/D CONVERSION METHOD: DOUBLE INTEGRAL

-A/D CONVERSION SPEED: 12-15 TIMES/SEC.

-MAX. A/D CONVERSION: ABOUT 500000 INPUT SIGNAL RANGE: 0mV ~16mV

-INPUT SENSITIVITY: 22 µV/e

LOAD CELL EXCITATION: DC 8V; 1≤150мА

-MAX.CONNECTION NUMBER OF LOAD CELL: 1 AT 350 OHM (A7), 4 Ат 350 онм (А7+)

• LOAD CELL CONNECTION MODE: 4 WIRE

VERIFIED COUNTS: 3000

– DIVISION: 1/2/5/10/20/50 OPTIONAL

– DISPLAY: 6 BITS LED, 6 STATUS INDICATIONS

-DISPLAY RANGE: 0999990 (d=10)

– POWER SUPPLY: AC 187~242V, 49~51 Hz and DC rechargeable battery 12V/2.8Ah
