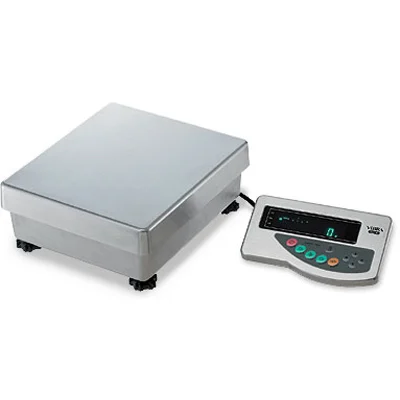

HJ-K Series

Hubungi Kami

Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol diatas atau melalui:

Telepon: 021 8690 6777

Email: sales@timbanganindonesia.com

Category:

Durable! Washable! High resolution!

  • All stainless steel housing
  • Maximum 1/330,000 resolution
  • Newly developed RATTS
    (Right Angle Transmission Tuning-fork Sensor)
  • Big pan (400 × 350mm)
  • Large fluorescent display

Water & Dust Proof IP65 (IEC/JIS) compliant

Display and weighing unit are washable from any direction.

Newly developed RATTS

Evolved from MMTS, RATTS (Right Angle Transmission Tuning-fork Sensor) extends the capacity range up to 62kg while retaining the strong advantages of a tuning-fork sensor, such as quick response, stability, durability, and anti-noise performance.

One touch calibration

Calibrates the s balance with just one touch of the calibration key. Cal Adviser function notifies the operator when calibration is recommended due to an environmental change (HJR type)

Large fluorescent display

Highly visible in all lighting conditions.

Bar graph indicator

shows the gross weight’s relation to the capacity.

5-point comparator function

Convenient for such tasks as classification, checking, and filling.

Standard 2-channel RS-232C

ISO/GLP/GMP compatible and includes calendar & clock function.

Under weighing function

It can be added using optional kit.

External Calibration Weight Models

Model (Pole) HJ-17KE HJ-22KE HJ-33KE HJ-62KDE
(Separate type) HJ-17KSE HJ-22KSE HJ-33KSE HJ-62KDSE
With EC approval (Pole) HJ-17KCE HJ-22KCE HJ-33KCE HJ-62KDCE
(Separate type) HJ-17KSCE HJ-22KSCE HJ-33KSCE HJ-62KDSCE
Capacity 17000g 22000g 33000g 6200/62000g
Readability 0.1g 0.1g 0.1g 0.1g/1g
Repeatability(s) 0.1g 0.1g/0.7g
Non-Linearity(typ.) ±0.3g ±0.3g/±1g
Calibration External calibration weight
Weight Approx. 17.6kg (Polo type), 16.6kg (Separate Type)
  • * HJ-XXXCE stands for EC type approval models

Built-in Motor Driven Weight Calibration Models

Model (Pole) HJR-17KE HJR-22KE HJR-33KE HJR-62KDE
(Separate type) HJR-17KSE HJR-22KSE HJR-33KSE HJR-62KDSE
With EC approval (Pole) HJR-17KCE HJR-22KCE HJR-33KCE HJR-62KDCE
(Separate type) HJR-17KSCE HJR-22KSCE HJR-33KSCE HJR-62KDSCE
Capacity 17000g 22000g 33000g 6200/62000g
Readability 0.1g 0.1g 0.1g 0.1g/1g
Repeatability(s) 0.1g 0.1g/0.7g
Non-Linearity(typ.) ±0.3g ±0.3g/±1g
Calibration Built-in motor driven weight
Weight Approx. 18kg(Polo type), 17kg (Separate Type)
  • * HJR-XXXCE stands for EC type approval models
Pan size 400 × 350mm
Dimensions 508 × 350 × 705mm
Weighing units gram, ct, oz lb, ozt, dwt, GN, tl(Hong Kong), tl(Taiwan), tl(Singapore, Malaysia) momme, tola
Power source AC adaptor 120/230V
Output 2 channel RS-232C (standard)
Measuring system Right Angle Transmission Tuning-fork Sensing (RATTS)
Tare Full weighing range
Display Fluorescent display
Modes Weighting, counting, percentage,
HJKBT Rechargeable battery unit
HJKBZ Buzzer output
HJKLM Relay Contact
HJKR4 RS422A output
HJKUH Under weighing hook
HJKPK Pole kit
HJK-Cable Extended pick-up calbe: 5m, 10m
