Indicator UScell USI-9A

Hubungi Kami

Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol diatas atau melalui:

Telepon: 021 8690 6777

Email: sales@timbanganindonesia.com

Category:

Description

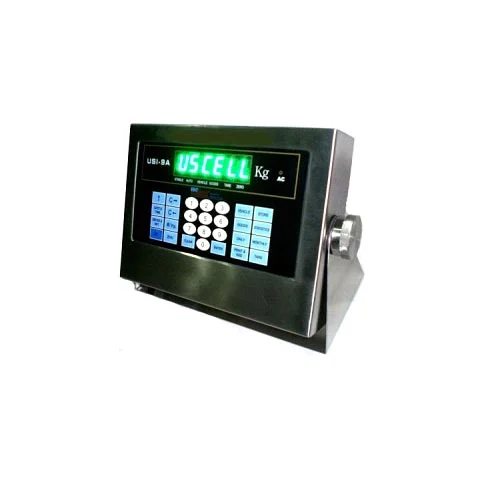

Indicator UScell USI-9A sebuah alat yang berfungsi Sebagai indikator timbangan lantai dan indikator jembatan timbang. Indicator UScell USI-9A produk terbaik dengan kualitas bagus yang kami keluarkan, barang dijamin original dan harga terjangkau. Untuk informasi lengkap mengenai harga timbangan segera hubungi kami untuk memperoleh informasi lengkap.

Terminal analog Load cell Weighing indicator
Application: Special function for Truck scale

  • Analog signal input range: 1 – 3 mV/V
  • Excitation voltage: 5V DC, up to 8, 350Ω load cells. up to 16, 700Ω load cells
  • A/D resolution: 1.5 million internal counts
  • A/D sampling rate: 60 times/second
  • Accuracy of measured weight can be temporary increased ten times
  • 6-digit, 7-segment with a decimal point, 30.5 mm high LED display
  • Real-time clock and programmable date and lock to stop work
  • 28 function keys menu driven calibration and configuration
  • Selectable display resolution
  • Selectable kg and t unit
  • Selectable digital filter value
  • Four non-linearity calibration points
  • Allow changing of indicator without recalibration
  • Lock display when overload is greater 130% FS
  • Auto zero range
  • Store and recall up to 100 vehicle numbers and tares, 1000 weighing records and 10 unit-prices
  • Optional  external 24-pin dot matrix printer
  • Selectable manual or automatic printout
  • Daily, monthly and statistics reports by time, vehicle or goods number
  • RS-232C interface with 2 transmit outputs, selectable baud rate: 1200, 2400, 4800, 9600
  • Optional RS-485 interface
  • Optional Score board ( US SB )
  • Optional weighing management software ( Software Scale Think )
  • External Power supply options from 187V to 242V, 50Hz ±2%
  • Internal rechargeable 6V DC battery, automatic power-off when battery is  low
  • Operating temperature: 0˚C to 45˚C
  • Relative humidity: < 85% non-condensing
