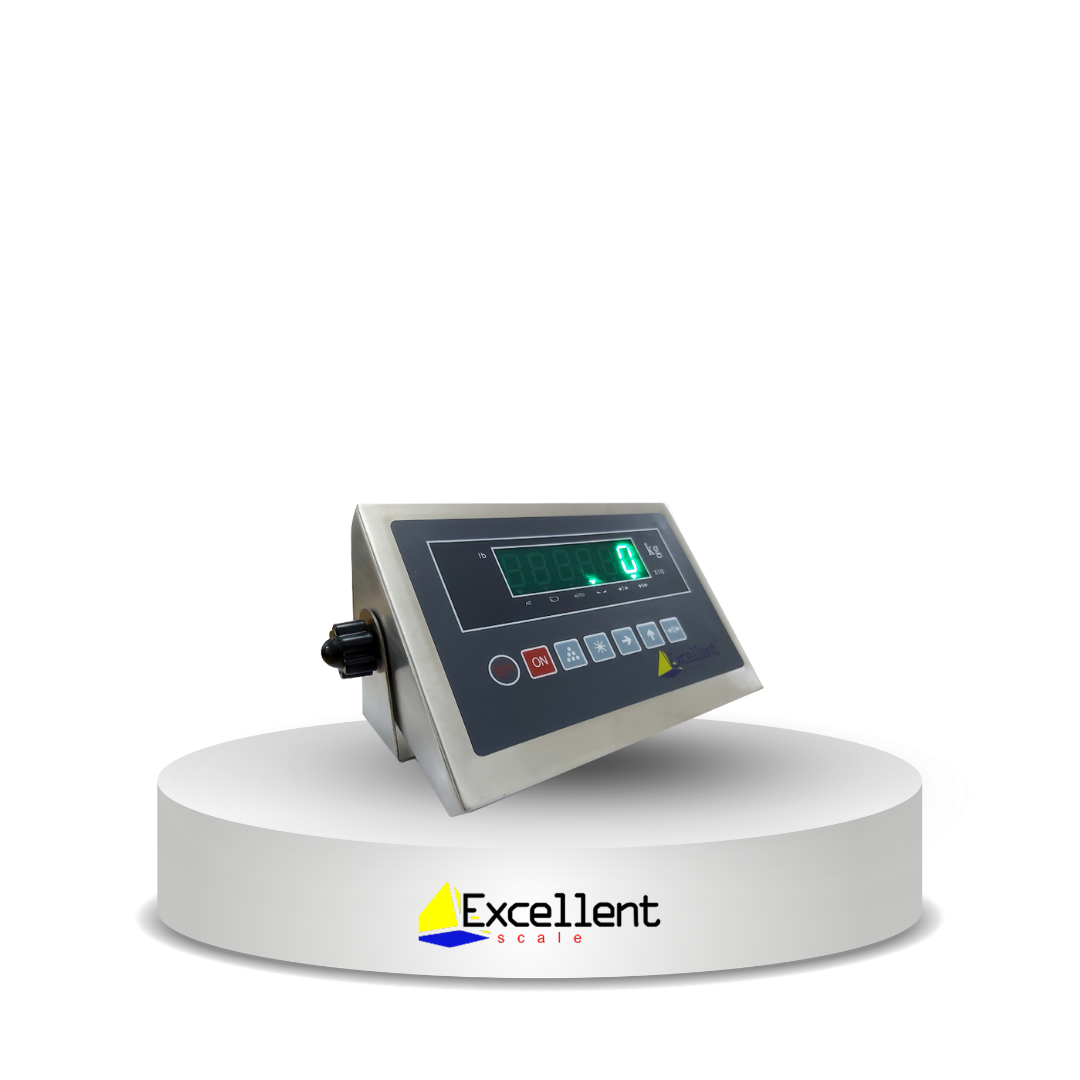

WEIGHING INDICATOR XK315-GBSS ADOPTS FAST SPEED, HIGH PRECISION Σ-ΔΑ/D CONVERSION TECHNOLOGY, AND SPECIAL ANTI-VIBRATION SOFTWARE TECHNOLOGY WIDELY APPLIED IN ELECTRONIC ANIMAL WEIGHING BENCH SCALE. FLOOR SCALE, MECHANIC – ELECTRONIC CONVERSION SCALE (HYBRID SCALE), AND SO ON. WEIGHING SYSTEM EQUIPPED WITH 1-4 AT 350 OHM LOAD CELL

• SIMPLE OPERATION
• KEYBOARD CALIBRATION AND CONFIGURATION
• WEIGHING UP TO 1:15,000 DIVISIONS
• EXCITATION VOLTAGE: DC 5V; UP TO 4-350 Ω LOAD CELLS CAN BE USED
• MANUAL OR AUTOMATIC MEMORY ACCUMULATION FACILITY
• HIGH RESOLUTION (×10) DISPLAY
• SELECTABLE DIGITAL FILTERING
• SELECTABLE AUTOMATIC POWER OFF
• 6-BIT DISPLAY LED WITH GREEN COLOR
• SELECTABLE DISPLAY RESOLUTION: 1/2/5/0.1/0.2/0.5/0.01/0.02/ 0.05/0.001/0.002/0.005/10/20/50/100/200/500/0.10/0.20/ 0.50/0.010/0.020/0.050
• RS-232C THE INTERFACE, OPTIONAL RS-485 INTERFACE 1200/2400/ 4800/9600 BAUD RATE CONTINUOUS ASCII DATA OUTPUT (CAN CONNECT WITH PC, SCOREBOARD AND TICKET PRINTER)
• OPTIONAL TICKET PRINTER CK
• OPTIONAL SCORE BOARD (MODEL RS)
• OPTIONAL SOFTWARE WEIGH MANAGEMENT “GENWEIGH” FOR PC EXTERNAL POWER SUPPLY: 230V(115V) AC. INTERNAL RECHARGEABLE
• 6V/2.8AH DC BATTERY
• OPERATING TEMPERATURE: 0°C+40°C
• STORAGE TEMPERATURE: -25°C- +55°C
