Description

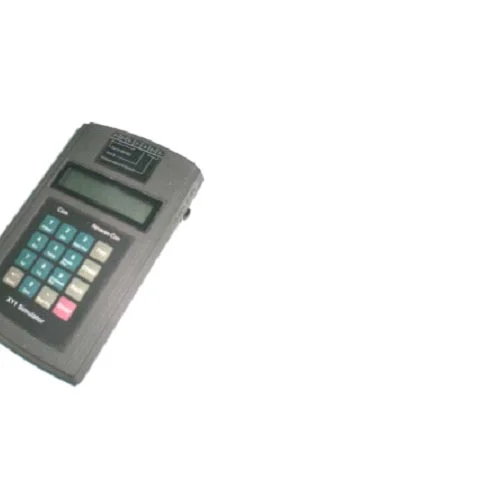

Simulator sel beban XY1 mengadopsi konverter D / A presisi tinggi, mampu mensimulasikan berbagai sinyal keluaran dari sel beban regangan dari penimbangan, pengepresan, pengukuran ergo, akumulasi dan sebagainya. Rentang output dari simulator adalah 0 – 2.0000mV / V dan non-linearitas <0,005% FS. Ini banyak digunakan untuk memverifikasi dan memeriksa indikator penimbangan dan sebagainya alat ukur yang sama terhubung ke load cell strain gauge.

  •  Able to set display segment of decrease or increase (F0 model)
  • Able to output signal accordance with value set by key (F1 model)
  • Able to output signal grade by grade in accordance with set range (F2 model)
  • Able to detect environment temperature
  • Able to measure excitation of the indicator measured
  • Able to program by key
  • Able to program by PC then download the program by serial port
  • Able to execute user define program, output signal in accordance with program, simulate the working procedure of auto weighing instrument
  • Work with excitation power from indicator
  • Non-linearity : ≤0.005%F.S
  • Output precision at F.S : ≤0.01%F.S(25 ˚C)
  • Output temperature rate at F.S : ≤5ppm/˚C
  • Excitation power range : DC 5 – 10V , 10 – 20V
  • Output Range : 0 – 2 mv/v
  • Outer resolution : 0.0001mV/V
  • Inner resolution : 1.000.000 code
  • Working temperature range : 0 – 40 ˚C
  • Stability : ≤50ppm/month
  • Input excitation current: excitation (V)/700 (ohm) + 5 mA
  • Output resistance: about 300 ohm
  • Size : 145 x 85 x 30 mm
  • Weight : 158g
