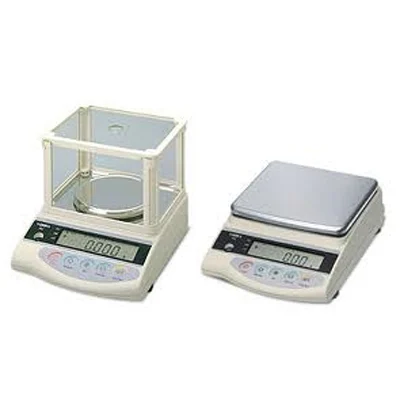

ViBRA AJ series provides four weighing modes
ViBRA AJ series provides four weighing modes, simple weight measurement, parts counting, percentage weighing and carat measurement for jewelers. You can easily switch
the weighing mode by pushing function key.
Large LCD (16.5mm height) with bright & white back-light makes the weighing operation easy and comfortable even in the dark location.
The model with name AJ”H” has semi-automatic built-in calibration weight. You can easily calibrate the balance with built-in weight. It ensures the accurate and precise weighing operation.
The compact housing is one of the advantages of ViBRA AJ series. The space-saving design enables you to instal it even in small space.
Furthermore you can bring it everywhere you want with optional rechargeable battery.
Quick response and stable indication are important feature in the precise weight measurement. The innovative tuning-fork sensor in ViBRA AJ series meets this demand and satisfies you.
RS232C interface is installed as standard feature in every models of ViBRA AJ series. You can connect the balance to outside devices like PC.
| Model | Capacity | Readability | Repeatability *1 | Non- Libearity *2 |
Pan size | Calibration | Weight units *3 | Dimensions (LWH) |
Weights |
|---|---|---|---|---|---|---|---|---|---|
| AJ-220E AJ-220CE |
220g | 0.001g | 0.001g | ±0.001g | φ118mm | with external calibration weight | g, ct, oz, lb, ozt, dwt, GN tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia), momme, tola | 235 × 182 × 170mm (including windshield) |
Approx. 1.3kg |
| AJ-320E AJ-320CE |
320g | 0.001g | 0.001g | ±0.001g | |||||
| AJ-420E AJ-420CE |
420g | 0.001g | 0.001g | ±0.001g | |||||
| AJ-620E AJ-620CE |
620g | 0.001g | 0.001g | ±0.002g | |||||
| AJ-820E AJ-820CE |
820g | 0.01g | 0.01g | ±0.01g | 170 × 142mm | 235 × 182 × 75mm | |||
| AJ-1200E AJ-1200CE |
1200g | 0.01g | 0.01g | ±0.01g | |||||
| AJ-2200E AJ-2200CE |
2200g | 0.01g | 0.01g | ±0.01g | 180 × 160mm | 265 × 192 × 87mm | Approx. 2.8kg | ||
| AJ-3200E AJ-3200CE |
3200g | 0.01g | 0.01g | ±0.01g | |||||
| AJ-4200E AJ-4200CE |
4200g | 0.01g | 0.01g | ±0.01g | |||||
| AJ-6200E AJ-6200CE |
6200g | 0.01g | 0.01g | ±0.02g | |||||
| AJ-8200E AJ-8200CE |
8200g | 0.1g | 0.1g | ±0.1g | |||||
| AJ-12KE AJ-12KCE |
12000g | 0.1g | 0.1g | ±0.1g |
| Model | Capacity | Readability | Repeatability *1 | Non- Libearity *2 |
Pan size | Calibration | Weight units *3 | Dimensions (LWH) |
Weights |
|---|---|---|---|---|---|---|---|---|---|
| AJH-220E AJH-220CE |
220g | 0.001g | 0.001g | ±0.001g | φ118mm | with built-in weight | g, ct, oz, lb, ozt, dwt, GN tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia), momme, tola | 235 × 182 × 170mm (including windshield) |
Approx. 1.6kg |
| AJH-320E AJH-320CE |
320g | 0.001g | 0.001g | ±0.001g | |||||
| AJH-420E AJH-420CE |
420g | 0.001g | 0.001g | ±0.001g | |||||
| AJH-620E AJH-620CE |
620g | 0.001g | 0.001g | ±0.002g | |||||
| AJH-2200E AJH-2200CE |
2200g | 0.01g | 0.01g | ±0.01g | 180 × 160mm | 265 × 192 × 87mm | Approx. 3.7kg | ||
| AJH-3200E AJH-3200CE |
3200g | 0.01g | 0.01g | ±0.01g | |||||
| AJH-4200E AJH-4200CE |
4200g | 0.01g | 0.01g | ±0.01g |
| Measuring system | Tuning-fork frequency sensing |
|---|---|
| Tare | Full weighing range |
| Display | LCD with back-light (height 16.5mm) |
| Power source | AC120/230V DC9V |
| Output | RS232C(standard) |
| AJBT(S) | Rechargeable battery for 220g-1200g |
|---|---|
| AJBT(M) | Rechargeable battery for 2200g-12kg |
| AJUH(S) | Under weighing hook for 220g-1200g |
| AJUH(M) | Under weighing hook for 2200g-12kg |
| AJDK | Density Measurement kit (220g-620g) |
