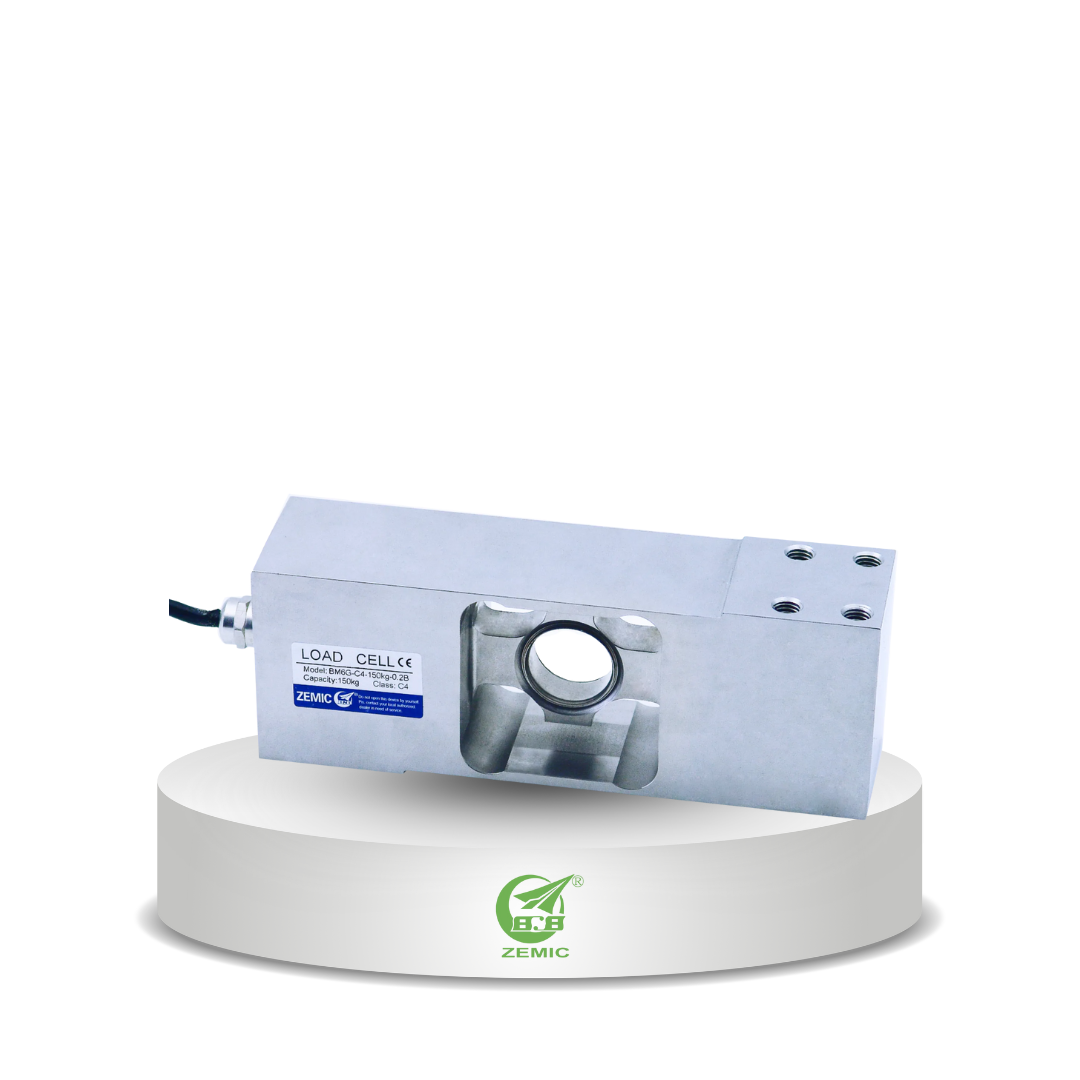

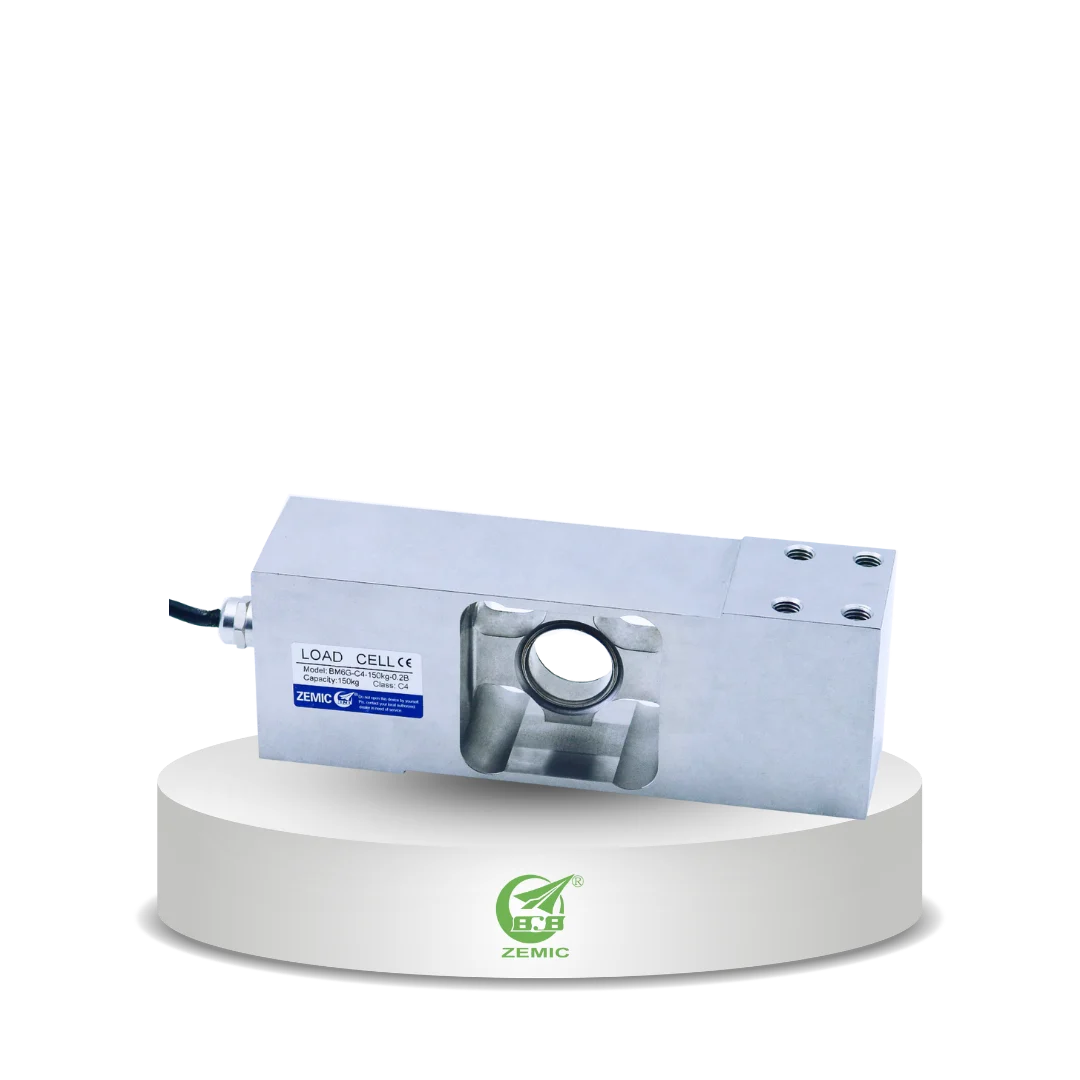

BM6G stainless steel single point load cell, OIML approved (10kg-500kg)

• • Stainless steel IP68/IP69k single point load cell.
  • Suitable for platform, belt scales and other weighing devices.
  • Recommended max. platform size 800 x 800mm (for 100 – 500 kg).
  • Recommended max. platform size 400 x 400mm (for 10 – 50 kg).
  • 10kg only available with PTB certificate D09-10.06 Revision 1 of C R60/2000 DE1-10.02.
  • 10kg, 20 kg, 50 kg also available with C4MR approval with PTB certificate D09-10.06 revision 1, C of C R60/2000 DE1-10.02.

Available Models
Capacity Accuracy Full Article Description
10kg C3/C4/C4MR BM6G-C3/C4/C4MR-10kgSE-3B6
20kg C3/C4/C5/C4MR BM6G-C3/C4/C5/C4MR-20kgSE-3B6
50kg C3/C4/C5/C4MR BM6G-C3/C4/C5/C4MR-50kgSE-3B6
75kg C3/C4/C5 BM6G-C3/C4/C5-75kgSE-3B6
100kg C3/C4/C5 BM6G-C3/C4/C5-100kgSE-3B6
100kg C3/C4/C5 BM6G-C3/C4/C5-100kg-3B
150kg C3/C4/C5 BM6G-C3/C4/C5-150kg-3B
200kg C3/C4/C5 BM6G-C3/C4/C5-200kg-3B
300kg C3/C4/C5 BM6G-C3/C4/C5-300kg-3B
400kg C3/C4/C5 BM6G-C3/C4/C5-400kg-3B
500kg C3/C4/C5 BM6G-C3/C4/C5-500kg-3B

Technical Specifications BM6G
Accuracy Class OIML R60 C3 OIML R60 C4 OIML R60 C5
Output Sensitivity ( = FS ) mV/V 2.0 ± 0.2
Maximum Capacity ( Emax ) kg 10, 20, 50, 75, 100, 150, 200,
300, 400, 500
20, 50, 75, 100,
150, 200, 250,
300, 400, 500
Max. Number of Load Cell Intervals nLC 3000 4000 5000
Ratio of min. LC Verification Interval Y = Emax / vmin 10000 15000 20000
Combined Error %FS ≤± 0.023 ≤± 0.0175 ≤± 0.014
Creep Error (30 minutes) %FS ≤± 0.0245 ≤± 0.0184 ≤± 0.0147
Temperature Effect on Zero (ZTC) %FS/10°C ≤± 0.0140 ≤± 0.0093 ≤± 0.0088
Temperature Effect on Sensitivity (STC) %FS/10°C ≤± 0.0117 ≤± 0.0088 ≤± 0.0070
Zero Balance %FS ≤± 2.0
Safe Overload %FS 150
Ultimate Overload %FS 300
Maximum Deflection mm 0.130 ~ 0.198
Excitation, Recommended Voltage V 5 ~ 12
Excitation, Maximum Voltage V 18
Input Resistance Ω 10-75kg: 380 ± 15 100-500kg: 350 ± 3.5
Output Resistance Ω 350 ± 10
Insulation Resistance (50V) MΩ ≥5000
Compensated Temperature °C -10 ~ + 40
Operating Temperature °C -35 ~ + 65
Storage Temperature °C -40 ~ + 70
Load Cell Weight kg 10kg – 100kgSE: ~1.25 100kg – 500kg: 3.35
Element Material Stainless Steel
Ingress Protection (acc. to EN 60529) IP68/IP69k
Recommended Torque on Fixation Bolts Nm M6: 10 M8:25
ATEX Classification (optional) II 1G Ex ia IIC T4 Ga II 1D Ex ia IIIC T 200 135°C Da II 3G Ex ic IIC T4 Gc
