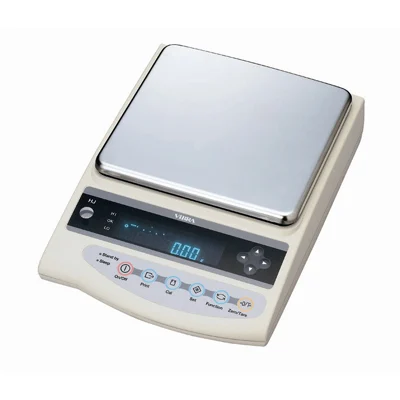

Elephantine pan & 1/620,000 resolution

  • Aluminum alloy die casting housing
  • Large fluorescent display
  • Full of capacity and readability range
  • Direction key for easy function setting
  • 17 ways of usage for every needs
  • One touch automatic calibration (HJR type)
  1. Large fluorescent display
    the display is highly visible in all lighting counditions.
  2. ISO/GLP/GMP
    Record calibration procedures and results with an optional printer.
  3. One touch calibration
    Calibrate the scale with just one touch of the calibration key.
  4. 17 ways of usage for every needs
    Includes counting, percentage, unit converting, density, accumulation and comparation.
  5. Direction Key
    is easy-function setting.

External Calibration Weight Models

Model HJ-220E
HJ-220CE		 HJ-320E
HJ-320CE		 HJ-420E
HJ-420CE		 HJ-620E
HJ-620CE
Capacity 220g 320g 420g 620g
Readability 0.001g 0.001g 0.001g 0.001g
Repeatability(s) 0.001g 0.001g 0.001g 0.001g
Non-Linearity(typ.) ±0.001g ±0.001g ±0.001g ±0.001g
Calibration With external weight
Weight Approx. 3.5kg
Model HJ-1200E
HJ-1200CE		 HJ-2200E
HJ-2200CE		 HJ-3200E
HJ-3200CE		 HJ-4200E
HJ-4200CE		 HJ-6200E
HJ-6200CE
Capacity 1200g 2200g 3200g 4200g 6200g
Readability 0.01g 0.01g 0.01g 0.01g 0.01g
Repeatability(s) 0.01g 0.01g 0.01g 0.01g 0.01g
Non-Linearity(typ.) ±0.01g ±0.01g ±0.01g ±0.01g ±0.01g
Calibration With external weight
Weight Approx. 4.0kg
  • * HJ-XXXXCE stands for EC type approval models
Model HJ-8200E
HJ-8200CE		 HJ-10KE
 HJ-12KE
HJ-12KCE		 HJ-15KE
HJ-15KCE		 HJ-21KE
HJ-21KCE		 HJ-31KE
HJ-31KCE
Capacity 8200g 10000g 12000g 15000g 21000g 31000g
Readability 0.1g 0.05g 0.1g 0.1g 0.1g 0.1g
Repeatability(s) 0.1g 0.05g 0.1g 0.1g 0.1g 0.1g
Non-Linearity(typ.) ±0.1g ±0.05g ±0.1g ±0.1g ±0.1g ±0.1g
Calibration With external weight
Weight Approx. 4.0kg Approx. 8.5kg
  • * HJ-XXXXCE stands for EC type approval models

Built-in Motor Driven Weight Calibration Models

Model HJR-220E
HJR-220CE		 HJR-320E
HJR-320CE		 HJR-420E
HJR-420CE		 HJR-620E
HJR-620CE
Capacity 220g 320g 420g 620g
Readability 0.001g 0.001g 0.001g 0.001g
Repeatability(s) 0.001g 0.001g 0.001g 0.001g
Non-Linearity(typ.) ±0.001g ±0.001g ±0.001g ±0.001g
Calibration With built-in weight & external weight
Weight Approx. 4.5kg
Model HJR-1200E
HJR-1200CE		 HJR-2200E
HJR-2200CE		 HJR-3200E
HJR-3200CE		 HJR-4200E
HJR-4200CE
Capacity 1200g 2200g 3200g 4200g
Readability 0.01g 0.01g 0.01g 0.01g
Repeatability(s) 0.01g 0.01g 0.01g 0.01g
Non-Linearity(typ.) ±0.01g ±0.01g ±0.01g ±0.01g
Calibration With built-in weight & external weight
Weight Approx. 5.8kg
  • * HJR-XXXXCE stands for EC type approval models
Pan size 200 × 200mm
Dimensions 330 × 220 × 88mm
Weighing units gram, ct, oz lb, ozt, dwt, GN, tl (Hong Kong), tl (Taiwan), tl (Singapore, Malaysia) momme, tola
Power source AC120/230V DC12V
Outputs RS-232C (2 outputs)
Measuring system Tuning-fork frequency sensing (MMTS)
Tare Full weighing range
Display Fluorescent display
Modes Weighting, counting, percentage, unit converting(*2), densit
  • *1 Only g, kg & ct are avairable in HJ(R)-CE
  • *2 unit converting is not available in HJ(R)-CE
HJBT Rechargeable battery unit
HJBZ Buzzer output
HJLM Relay contact
HJR4 RS-422A output
HJFP Full Pack set with buzzer, relay contact
HJUH Under weighing hook
HJDK Density Measurement kit for HJ(220g-620g)
