Indikator Timbangan Excellent IND-C602

Hubungi Kami

Untuk meminta informasi produk dan pemesanan, anda bisa menghubungi marketing kami di Whatsapp melalui tombol diatas atau melalui:

Telepon: 021 8690 6777

Email: sales@timbanganindonesia.com

Description

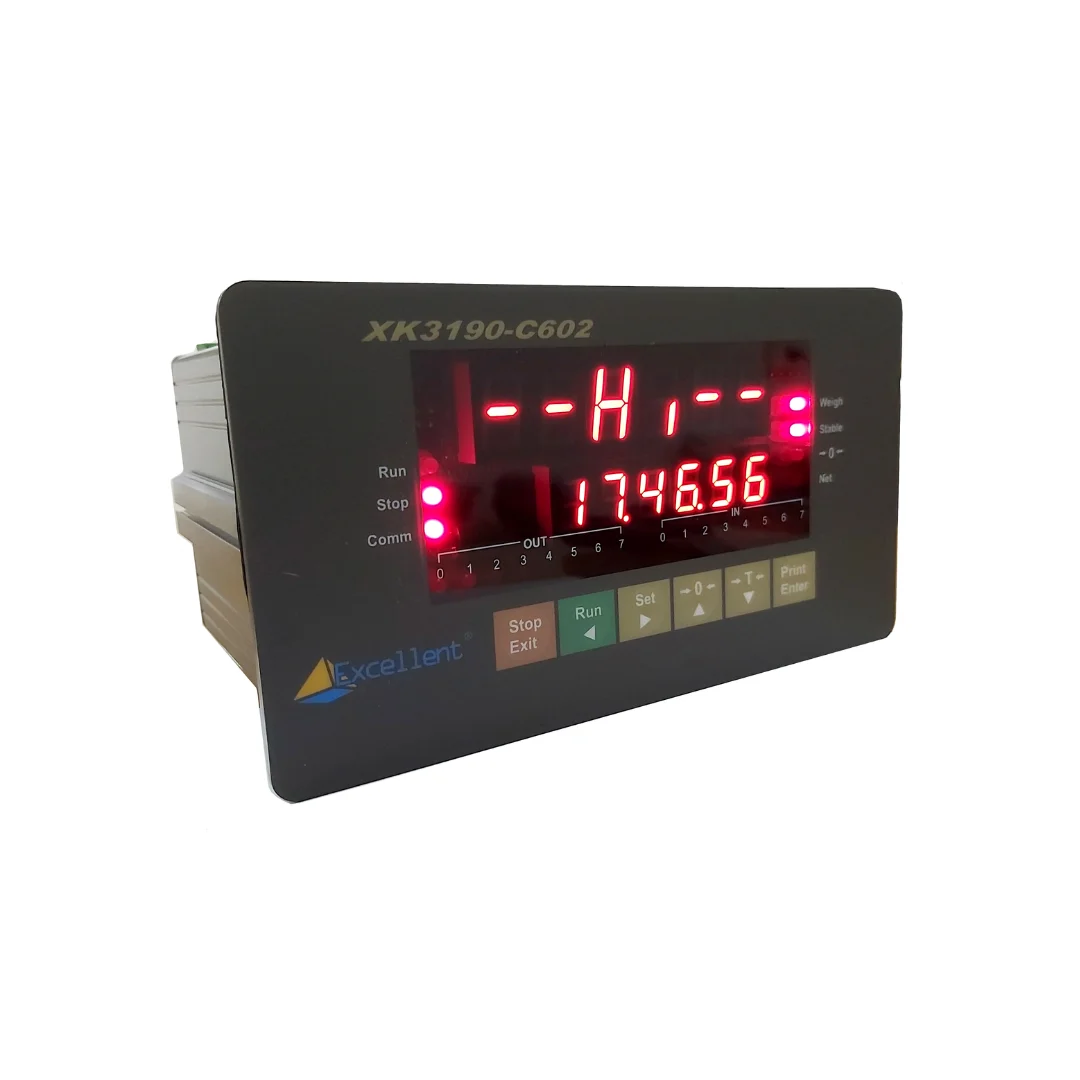

Indikator Timbangan Excellent IND-C602

Termasuk relay output

Fungsi penimbangan batching control , bagging, check weigher

ACCURACY CLASS: III
VERIFIED COUNTS: n=3000
INPUT SIGNAL RANGE: -15mV ~15mV
INPUT SIGNAL VOLTAGE OF VERIFIED COUNTS: 1 µV/e
LOAD CELL EXCITATION: DC 5V;80mA
CONNECTION NUMBER OF LOAD CELL: 4 AT 350 онм
LOAD CELL CONNECTION MODE: 6 WIRE WITH AUTO
COMPENSATION FOR LONG DISTANCE
DISPLAY: MAIN DISPLAY WITH 6 DIGITS LED, DATA HEIGHT 0.56 INCH, ACCESSORY DISPLAY WITH 6 DIGITS LED, DATA HEIGHT 0.4 INCH, 23 STATUS INSTRUCTION LIGHTS
WITH REAL TIME CLOCK. TIME AND DATE CAN BE DISPLAYED ON THE INDICATOR PANEL
DATA STORAGE 8064 WEIGHING DATA OR 4032 TIME & WEIGHING DATA
SCORE BOARD DISPLAY INTERFACE: SERIAL OUTPUT AND 20MA CURRENT LOOP SIGNAL
COMMUNICATION INTERFACE: 2 SERIAL RS232C, ONE CAN BE SET TO BE RS422/RS485, BAUD RATE 600-57600 FOR SELECTION

SELECTABLE OF FOUR PROGRAMME MODE: SELF-CONTROL OR
EXTERNAL-CONTROL CATCHWEIGHER, PLUS OR MINUS AUTOMATIC GRAVIMETRIC FILLING INSTRUMENTS. THE CATCHWEIGHER CAN BE SET TOBE GENERAL CATCHWEIGHER AND PEAK-VALUE MAINTENANCE SCALE. IT CAN STORE 5 BATCHING MATERIAL USED AS FIX-QUANTITY SCALE OR CATCHWEIGHER
SET DIGITAL FILTER INTENSITY, A/D CONVERSION SPEED
WEIGHING DATA SAVE, CHECK AND DELETE, PROTECTION IN CASE OF POWER OFF
REAL TIME CLOCK WITHOUT EFFECT ON POWER OFF
STANDARD: 8 INPUT, 2 OF THEM CAN BE HIGH SPEED COUNTING
INPUT, CODER INPUT OR INTERRUPT (HIGH SPEED REFLECTION)
8 OUTPUT (RELAY BOX)BE ABLE TO FIX-QUANTITY CONTROL
OF TWO MATERIAL FOR STANDARD PROGRAME (FOUR MATERIAL
FOR MODIFIED PROGRAMME)
INPUT & OUTPUT CAN BE EXPANDED, EACH I/O EXPANDING BOX CAN BE EXPANDED TO 8 ON/OFF INPUT AND 8 ON/OFF OUTPUT. THE MAX. CONNECTION NUMBER OF I/O EXPANDING BOX IS FOUR. TOTAL QUANTITY OF I/O IS 40 INPUT AND 40 OUTPUT
2 SEPARATE SERIAL COMMUNICATION INTERFACE, ONE IS RS232, ANOTHER IS RS232/RS422/RS485 FOR SELECTION, WITH TWO COMMUNICATION WAYS BY CONTINUOUS SENDING OR COMMAND METHOD
PARALLEL/SERIAL PRINT INTERFACE, ABLE TO CONNECT MANY KINDS OF PRINTER
