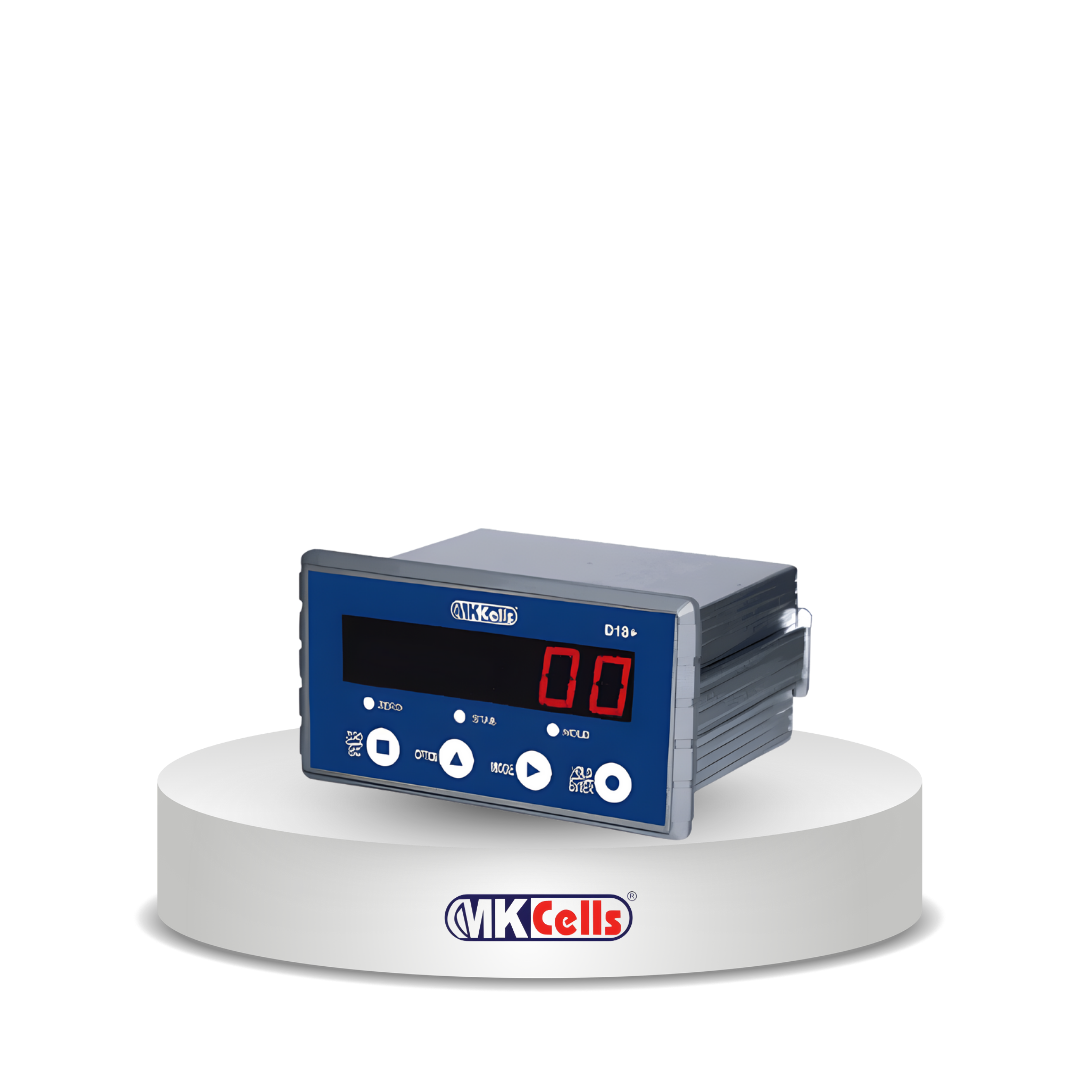

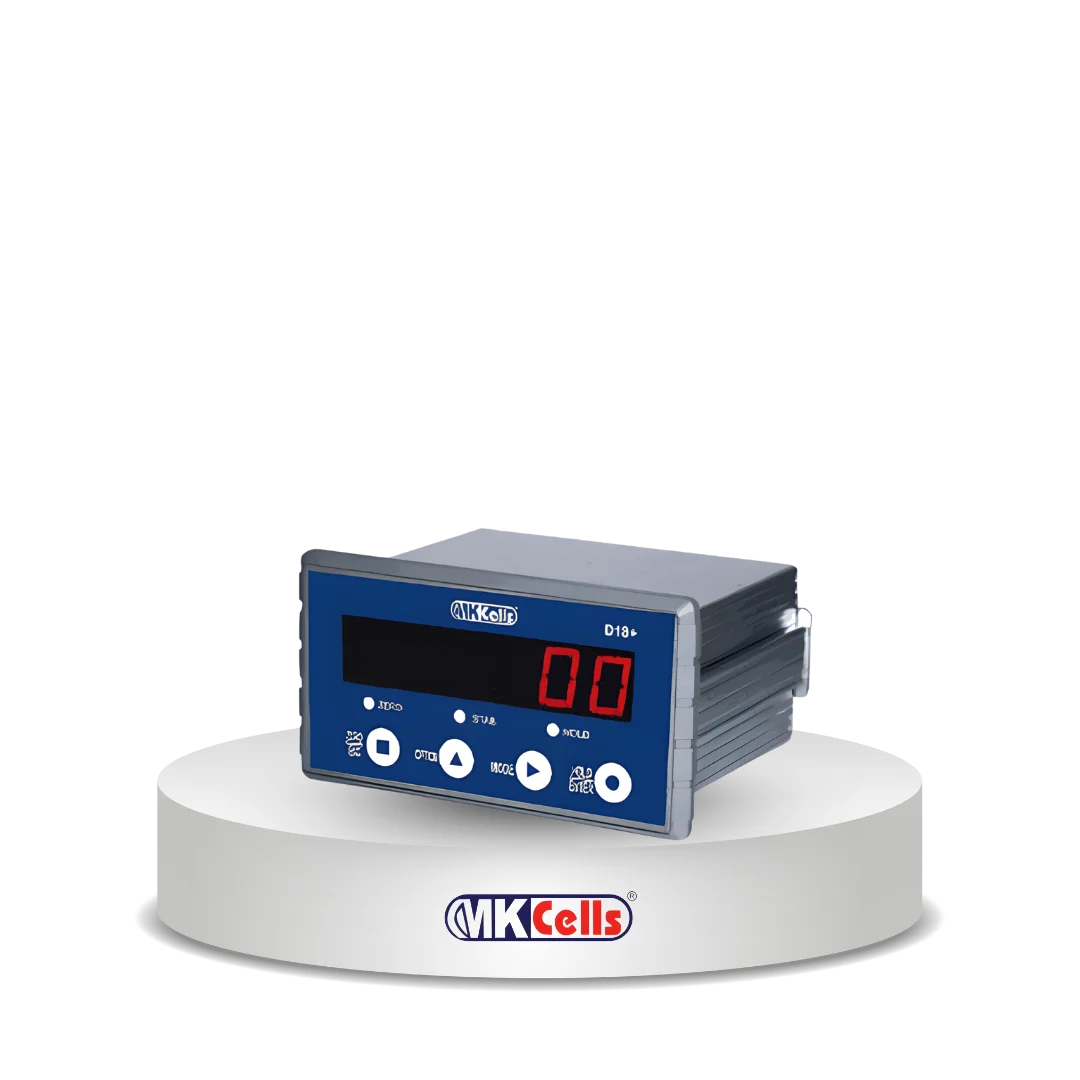

Indikator Timbangan MK-CELLS D18+
Indikator penimbangan yang dipasang di panel menawarkan yang luar biasa keandalan, pemfilteran tingkat lanjut, dan kemampuan teruji untuk bekerja secara stabil di bawah pengaruh lingkungan industri yang parah.
● Standard RS232/RS485 interface
● Optional analog output (0-5V initial)
● Powers up to 8 units of load cells
● I/O points (1 input, 2 outputs) as standard
● Simple design to facilitate connection to a PLC
● Low cost digital indicator for various applications
● Selectable A/D sampling 15/30/60/120/480/960times/sec
● Easy selectable minimum divisions: 1, 2, 5, 10, 20 or 50
● Compact, lightweight body makes it ideal for mounting into a control panel
|
Model |
MK-CELLS D18+ |
| A/D conversion method | 24-bit Delta-Sigma modulation |
| Zero adjustment range | 0 to 12mV (Load cell 3mV/V) |
| Nonlinearity | 0.01% F.S |
| Maximum input voltage | 0 to 15mV (Load cell 3mV/V) |
| Minimum sensitivity | 0.1 μ V/d |
| Input impedance | 10ΜΩ |
| Sampling rate | 15/30/60/120/480/960 SPS |
| Display resolution | 1/100,000 |
| Load cell excitation | DC5V, 200Ma (Max), Up to 8 load cells (3500) can be connected |
| Display elements | 7-segment 6-digit red LED |
| Data display range | 0 to 999,999d |
| Status indicators | ZERO, STAB, HOLD |
