Description

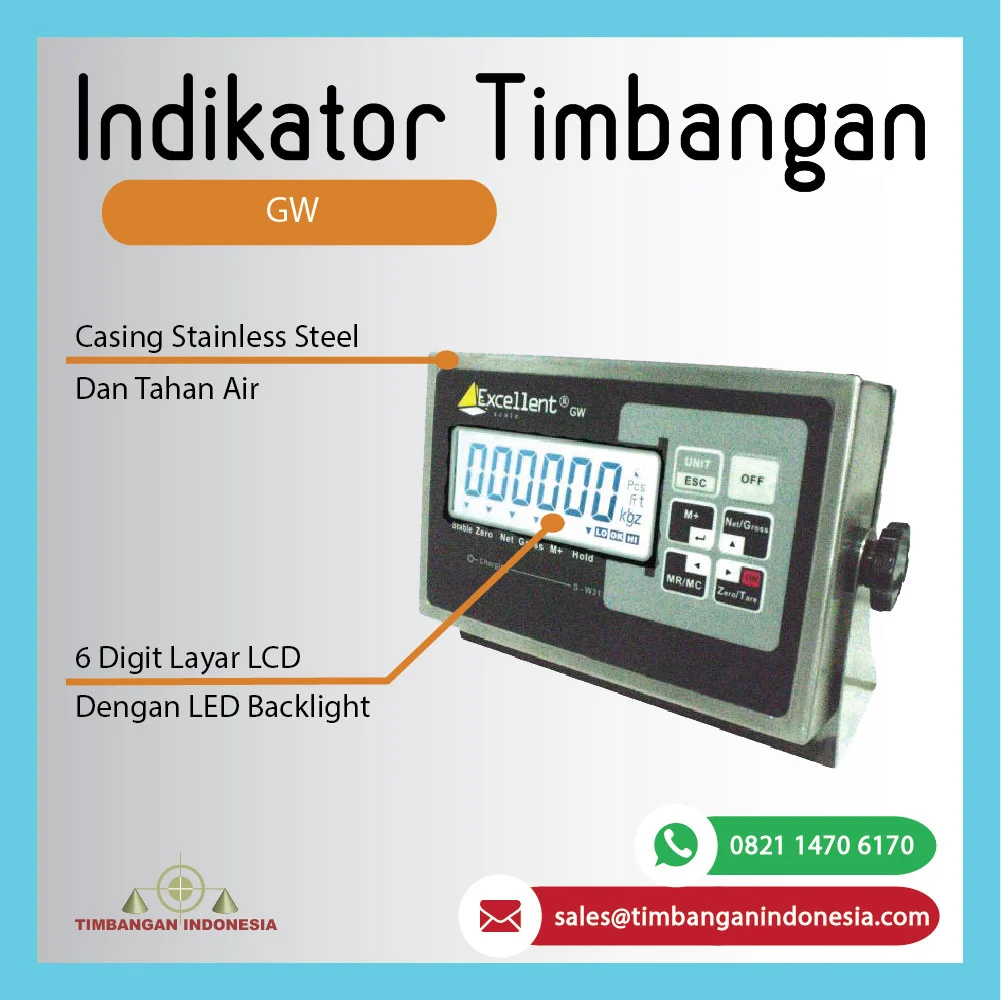

Weighing Indicator GW adopts fast speed, high precision Σ-Δ A/D conversion Technology. Widely applied in electronic water proof bench scale. floor scale, mechanic – electronic conversion scale (hybrid scale), and so on. weighing system equipped with 1 – 4 at 350 ohm load cell

Stainless steel housing and water proof
Easy operation: 6 function keys
LCD display with LED backlight : 6 digits
Kilogram (kg) and pound (lb) weighing mode
Switchable between weighing mode and simple counting (pcs) mode
Switchable net and gross weight
HI/OK/LO check weighing mode
Hold function : peak hold, animal weighing hold, and another 3 model hold selectable
High precison A/D conversion with readability 1/ 30000
Call and display inner code to replace weight observing and analysis tolerance
Set-up zero tracking range and zero (auto/manual) range
Full range tare
Gravitational claibration and 4 points linearity correction
Low battery indication and auto power off at low battery
AC/DC power supply with built-in rechargeable 6V/1.2Ah battery and standard 9v/500mA adaptor
Optional serial communication interface RS 232 with selectable baud rate by continuous sending method ( can connect with Personal computer, score board and micro printer)

A/D conversion method: Σ – Δ
A/D conversion speed : 10 times/sec
Display: 6 digits LCD, 5 status indications
Power supply: AC 187~242V, 49 ~ 51 Hz ( adaptor 9V/500mA) and DC rechargeable battery 6V/1.2AH
Operation temperature: 0˚C ~ 40˚C
Input signal range: -2mV ~ 12mV
Input sensitivity: ≥ 1 μV/e
Load cell excitation: DC 5V
Max.connection number of load cell: 4 at 350 ohm
Load cell connection mode: 4 wire
Max. external counts: 30000
Division: 1/2/5/10/20/50 optional
Optional serial interface RS 232 with selectable baud rate 1200/2400/4800/9600/19200, transmission distance: ≤ 30 meters
