Description

Weighing Indicator XK3190-A12ESS adopts fast speed, high precision Σ-Δ A/D conversion Technology, and special anti- vibration software technology widely applied in electronic Water proof bench scale, floor scale, mechanic – electronic conversion scale (hybrid scale), and so on. Weighing system equipped with 1 – 4 at 350 ohm load cell

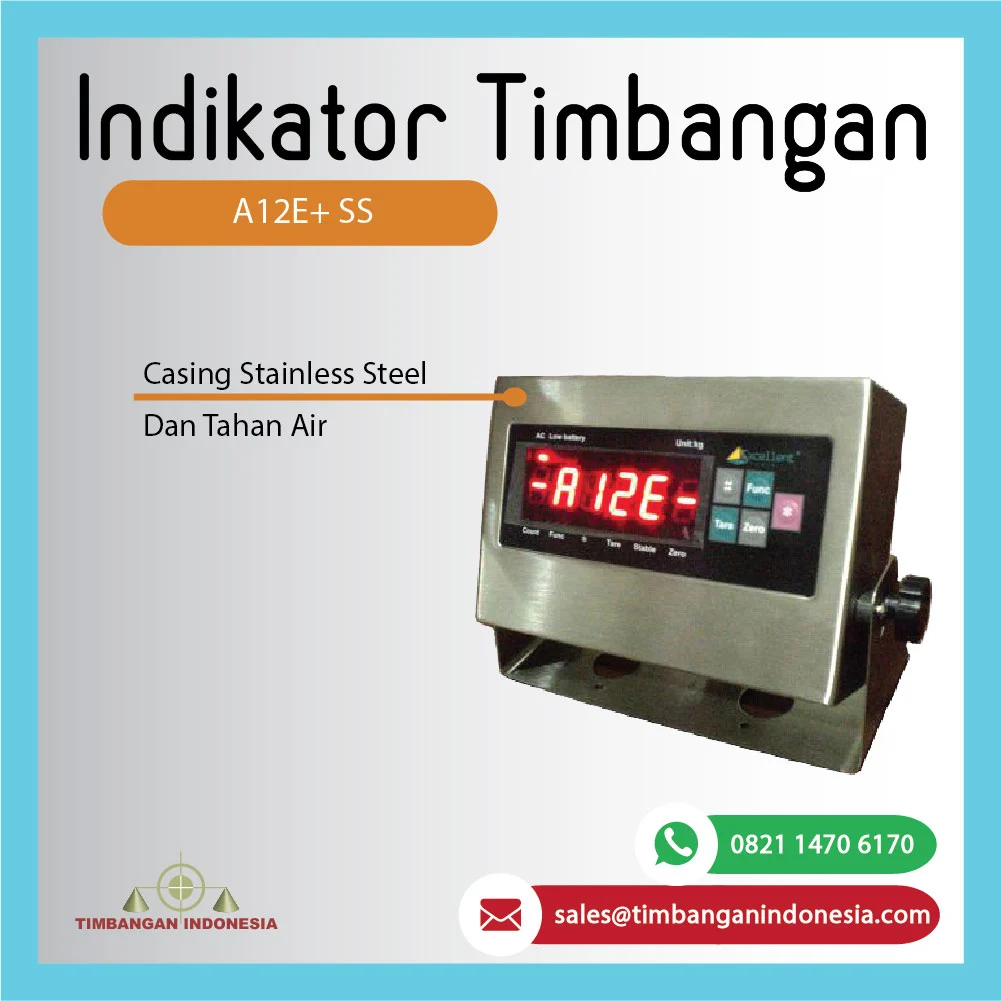

Stainless steel housing and water proof
High precison A/D conversion with readability 1/ 30000
Special digital filtering technology to strenghten anti – vibration ability
Call and display inner code to replace weight observing and analysis tolerance
Set-up zero tracking range, zero (auto/manual) range and zero speed
Set up digital filter intensity, range, and stable time
Alarm for low battery and auto power off at low battery
AC/DC power supply with built-in rechargeable 6V/4Ah battery
Serial communication interface RS 232 with selectable baud rate by continuous sending method or on command method

A/D conversion method: Σ – Δ
A/D conversion speed : 10 – 20 times/sec.
Max. A/D conversion bits: 20
Input signal range: -10mV ~ 15mV
Input sensitivity: ≥ 1 μV/e
Load cell excitation: DC 5V; 1≤150mA
Max.connection number of load cell: 4 at 350 ohm
Load cell connection mode: 4 wire
Verified counts: 3000
Max. external counts: 30000
Max.internal resolution: 300000
Division: 1/2/5/10/20/50/ optional
Optional scoreboard interface sending by 20mA current loop with baud rate 600, transmission distance : ≤2000 meters
Serial interface RS 232 with selectable baud rate 1200/2400/4800/9600, transmission distance: ≤ 30 meters
Display : (A12E+) 6 bits LED, 6 status indications
Display range: -2000 ~ 150000 (d=10)
Power supply: AC 187~242V, 49 ~ 51 Hz and DC rechargeable battery 6V/4Ah
