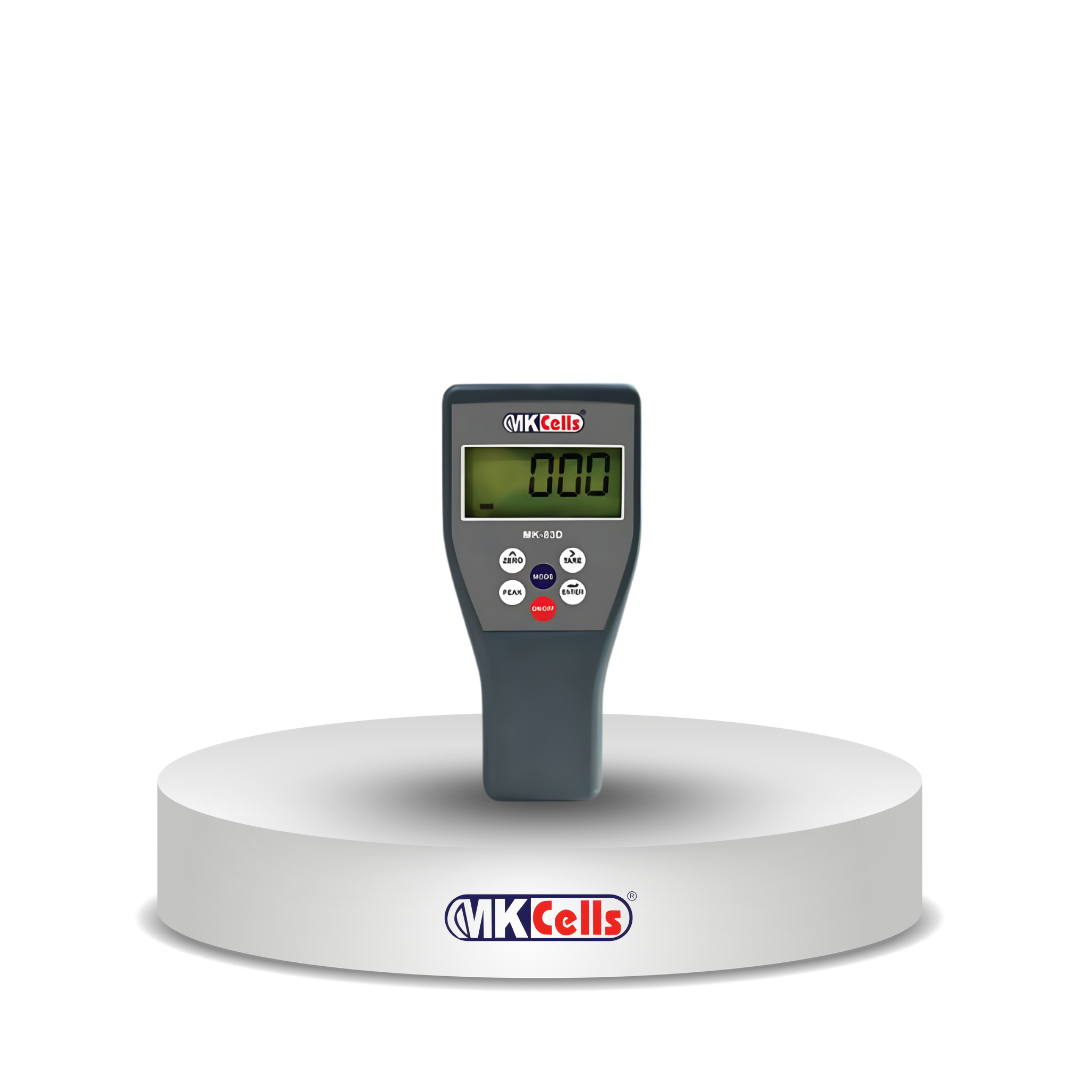

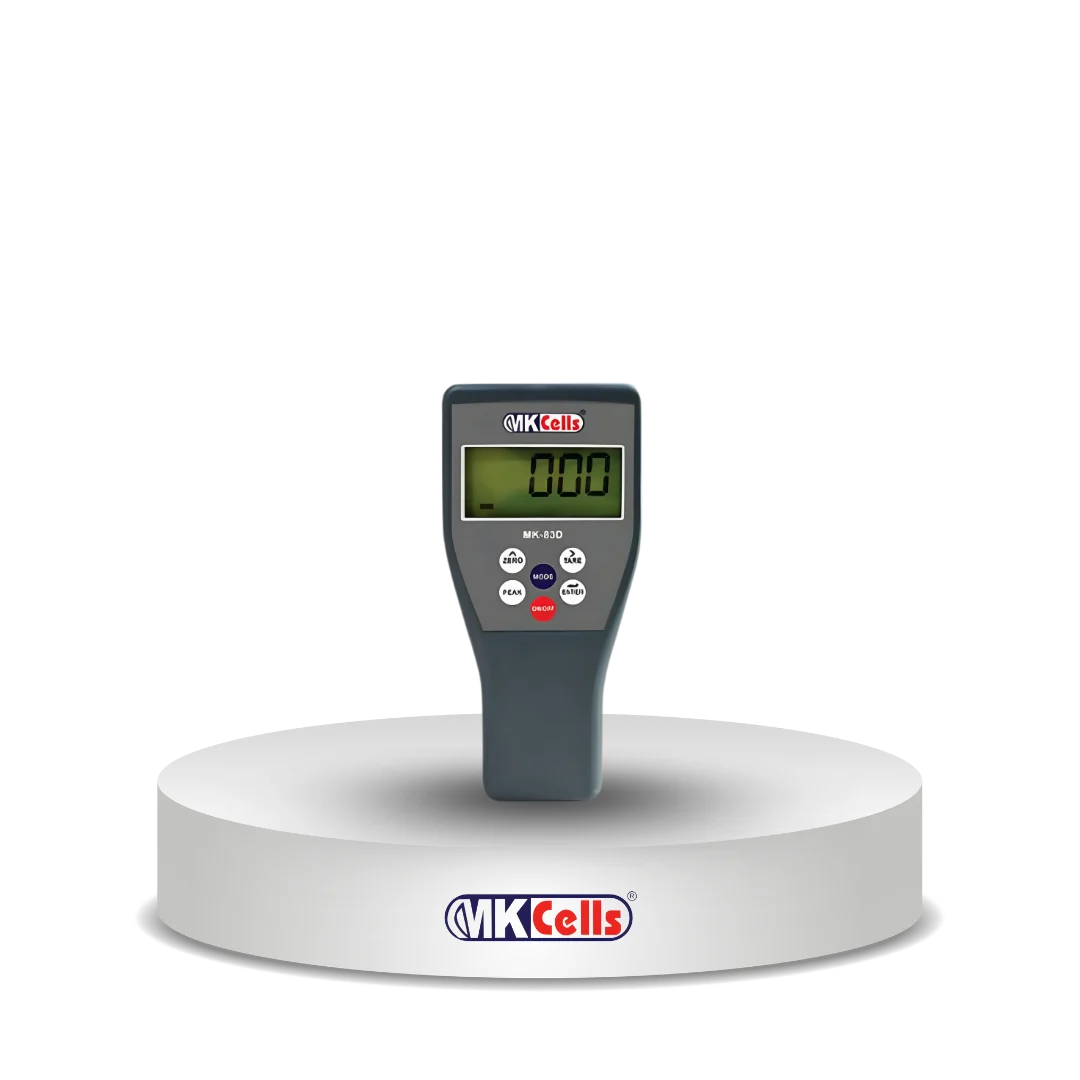

Indikator Timbangan MK-CELLS MK-E83



Display 6 digits LCD with backlight
Wireless Distance Up to 200m without obstacles
Radio Frequency 433MHz
Signal input range -3mV-15mV
Load cell connection 4 wire technique
Load cell excitation DC 5V
Filtering Low, Medium or High Selectable
Resolution 2000 to 3000 divisions standard (up to 15,000 available)
Zero Range Auto/Manual setting, from 4% to 100%
Tare Range 100% F.S.
Overload Indication 100% F.S. + 9e
Max. Safety Load 125% F.S.
Ultimate Load 400% F.S.
AD Battery DC 6V/4Ah rechargeable Ni-H battery
Indicator Battery 4.8V/2.8Ah rechargeable Ni-H battery
Battery charger Input: AC100-240V 50/60Hz Output: 850mA
Operating Temperature Range -20°C+50°C
Operating Humidity $85% RH under 20°C



































  1. Instrument size:
  • 220x105x50mm handheld > Portable
  • Wireless double-sided communication (can tare, zero, calibration and parameter setting)
  • 5 digits LCD display with backlight
  • Digit height: 25mm
  • Many function on instrument keyboard
  • Such as tare, zero, peak, filter setting, gravity regulation
  1. Calibration:
  • Keyboard calibration and parameter setting
  • Simple operation
  1. Battery:
  • 4pcs AA size alkaline batteries
  • 50 hours radio continuous using
  1. Set-point:
  • One user programmable Set-Point can be used for safety and warning applications or for limit weighing
  1. RS-232 communication:
  • Print or exact data easily
  • Continuous output can drive a scoreboard
  1. Operating temperature: -20°C to 60°C
  2. Antenna: Integral antenna
  3. Update rate from loadcell: 12 times per second
  4. Radio frequency:
  • Standard 2.4GHz wireless module
  • Up to 70m wireless distance
  • Up to 128 channels available (433MHz, 868MHz wireless module optional)
