Description

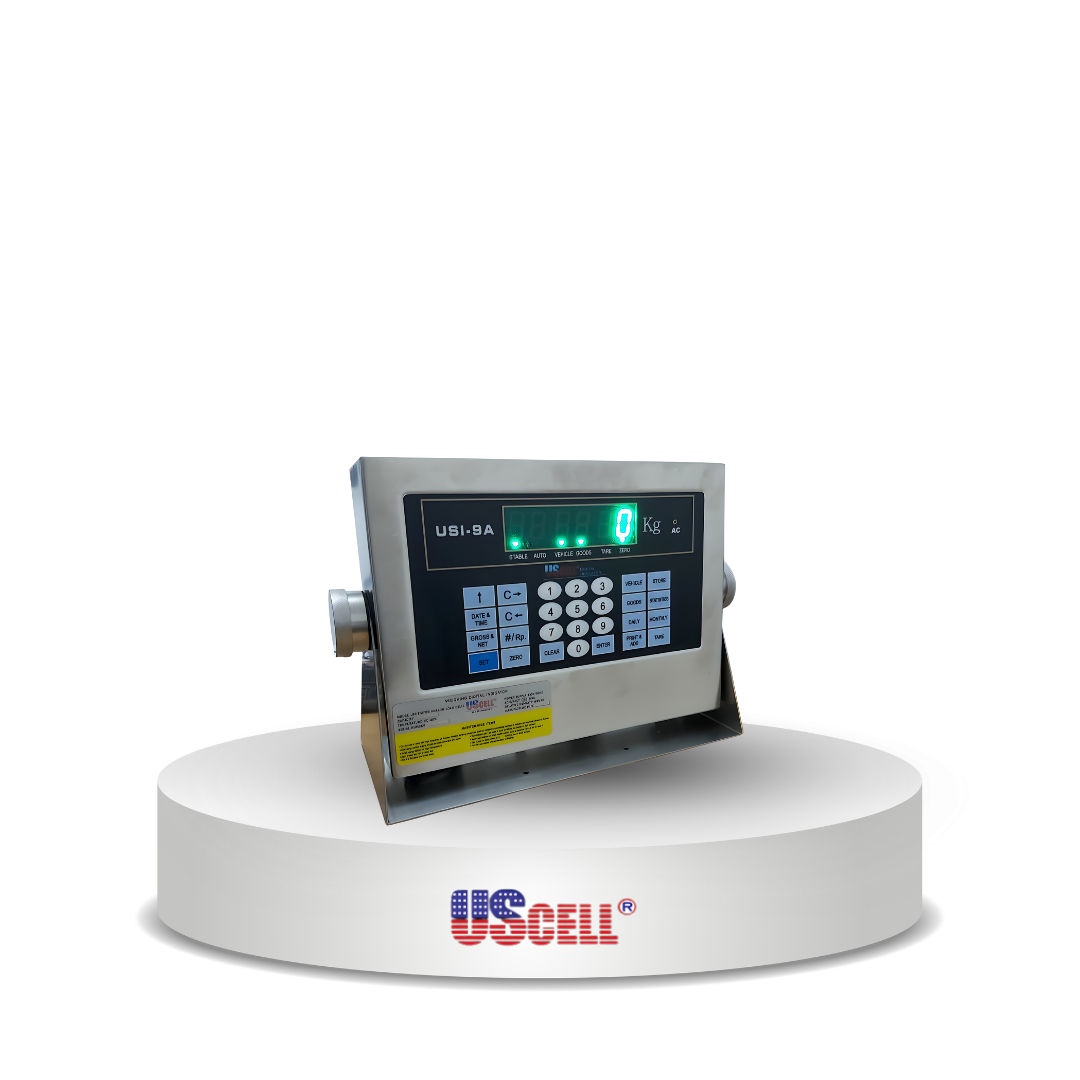

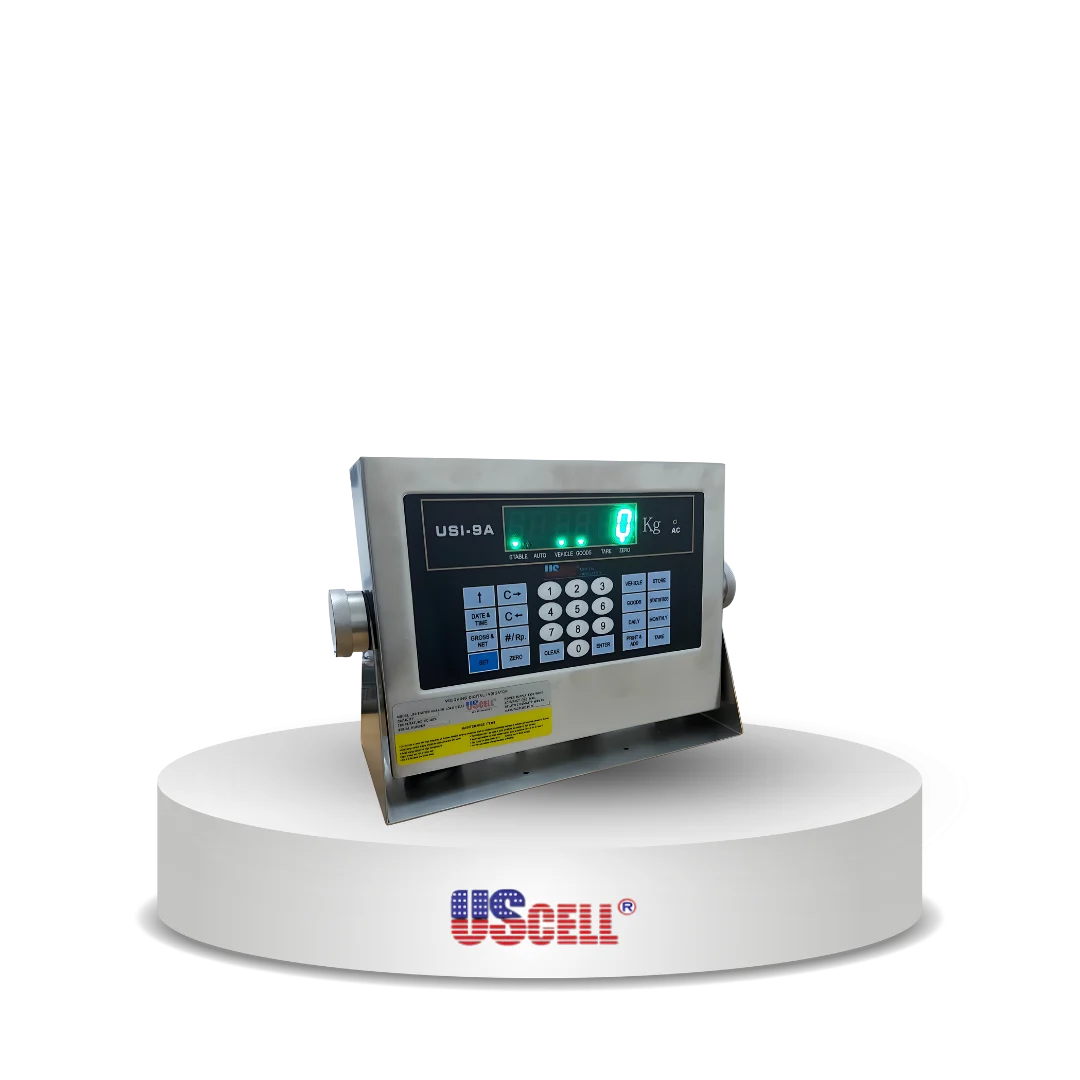

Indikator Timbangan Uscell USI-9A

Indicator – Analog Load Cell

Fungsi : Penimbangan Truck Scale

ANALOG SIGNAL INPUT RANGE: 1-3 MV/V
EXCITATION VOLTAGE: 5V DC, UP TO 8, 3500 LOAD CELLS. UP TO 16, 70ΟΩ LOAD CELLS
A/D RESOLUTION: 1.5 MILLION INTERNAL COUNTS
A/D SAMPLING RATE: 60 TIMES/SECOND
ACCURACY OF MEASURED WEIGHT CAN BE TEMPORARY INCREASED TEN TIMES
6-DIGIT, 7-SEGMENT WITH A DECIMAL POΙΝΤ, 30.5 ΜΜ HIGH LED DISPLAY
REAL-TIME CLOCK AND PROGRAMMABLE DATE AND LOCK TO STOP WORK
28 FUNCTION KEYS MENU DRIVEN CALIBRATION AND CONFIGURATION
SELECTABLE DISPLAY RESOLUTION
SELECTABLE KG AND T UNIT
SELECTABLE DIGITAL FILTER VALUE
FOUR NON-LINEARITY CALIBRATION POINTS
ALLOW CHANGING OF INDICATOR WITHOUT RECALIBRATION
LOCK DISPLAY WHEN OVERLOAD IS GREATER 130% FS :
AUTO ZERO RANGE
STORE AND RECALL UP TO 100 VEHICLE NUMBERS AND TARES, 1000 WEIGHING RECORDS AND 10 UNIT-PRICES
OPTIONAL EXTERNAL 24-PIN DOT MATRIX PRINTER
SELECTABLE MANUAL OR AUTOMATIC PRINTOUT
DAILY, MONTHLY AND STATISTICS REPORTS BY TIME, VEHICLE OR GOODS NUMBER :
RS-232C INTERFACE WITH 2 TRANSMIT OUTPUTS, SELECTABLE BAUD RATE: 1200, 2400, 4800, 9600
OPTIONAL RS-485 INTERFACE
OPTIONAL SCORE BOARD (US SB)
OPTIONAL WEIGHING MANAGEMENT SOFTWARE (SOFTWARE SCALE THINK)
EXTERNAL POWER SUPPLY OPTIONS FROM 187V TO 242V, 50Hz ±2% INTERNAL RECHARGEABLE 6V DC BATTERY, AUTOMATIC POWER-OFF WHEN BATTERY IS LOW OPERATING TEMPERATURE: 0°C TO 45°C
RELATIVE HUMIDITY: < 85% NON-CONDENSING
