Description

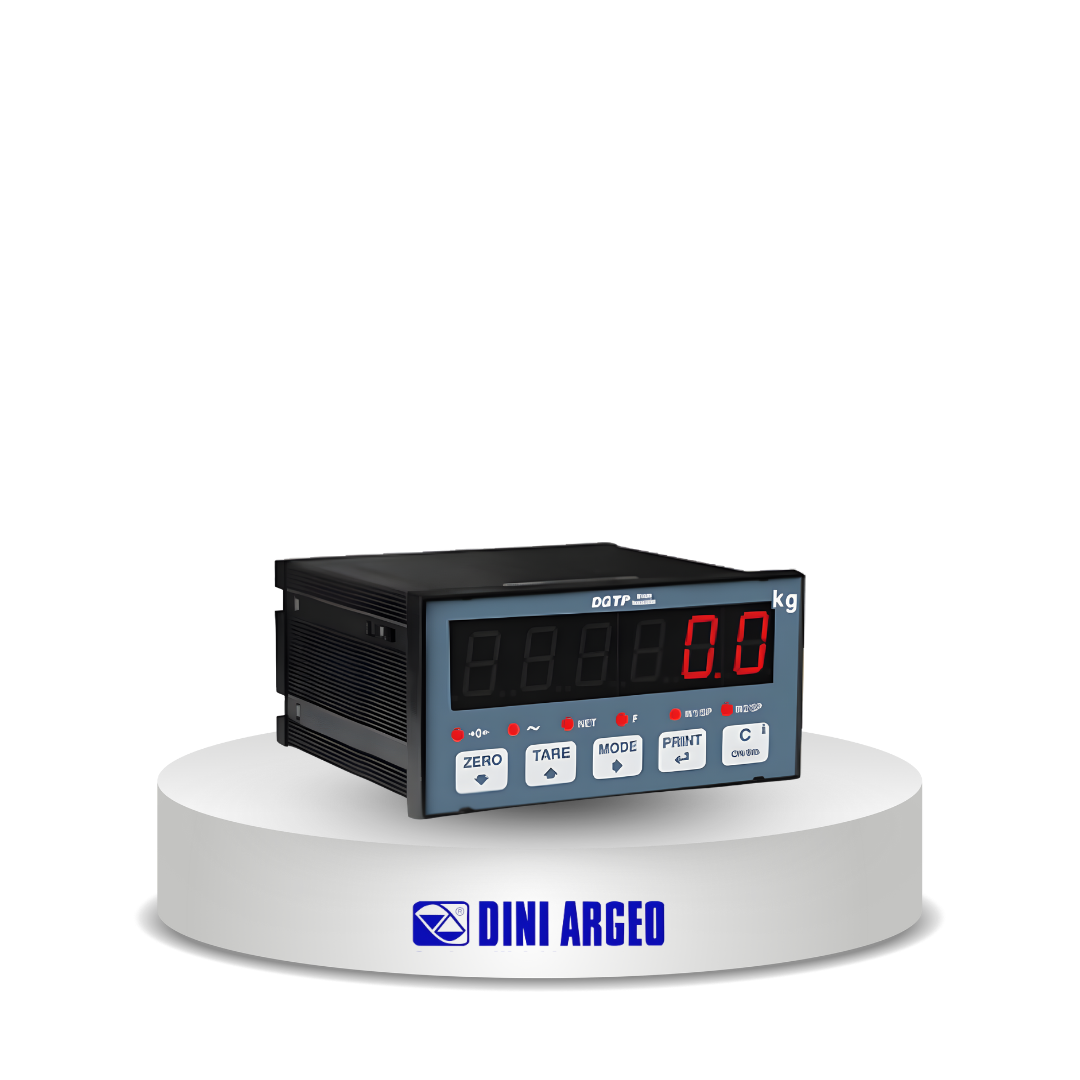

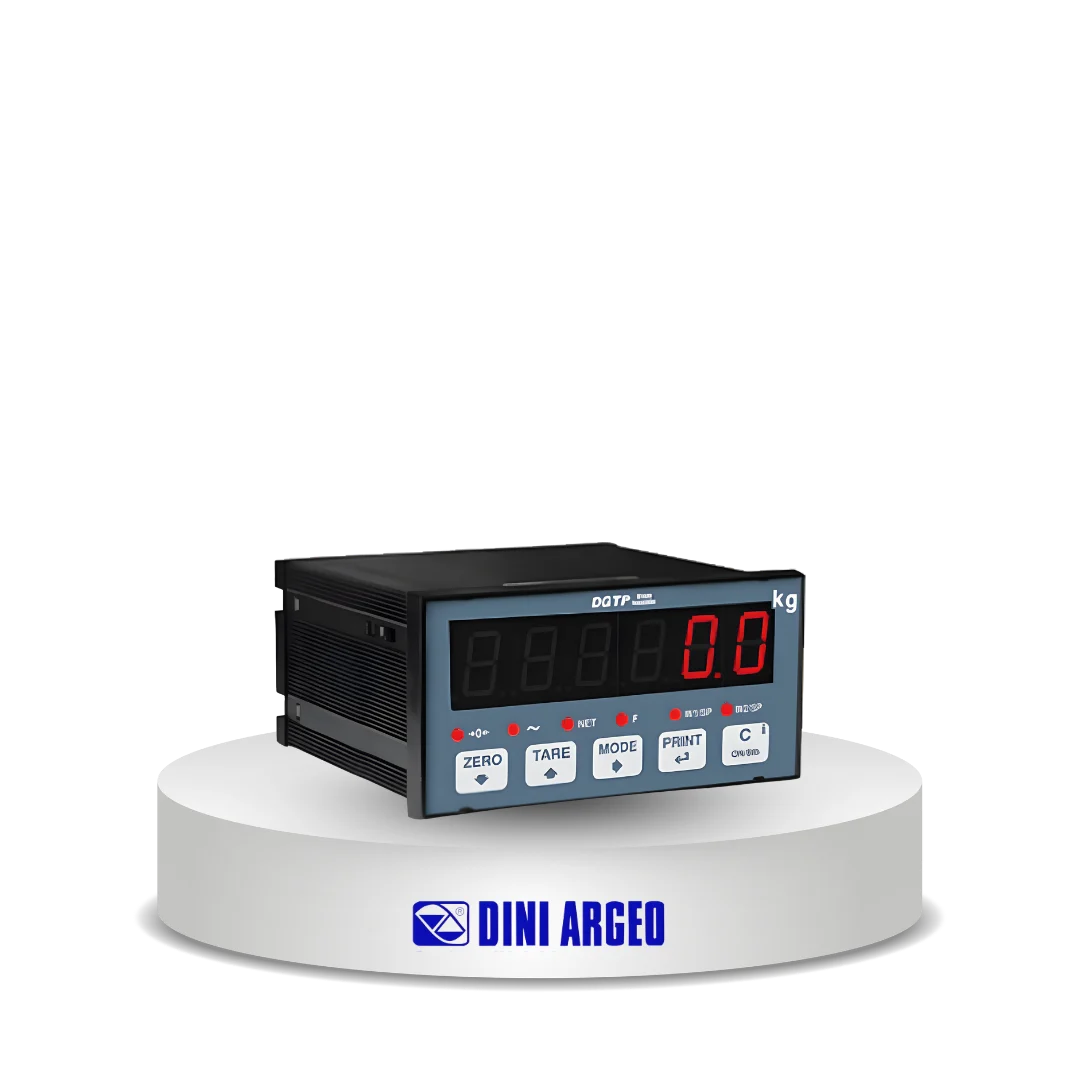

Indikator Timbangan DINI ARGEO DGTP



Ideal sebagai mikrokontroler dalam sistem penimbangan dan takaran industri sehingga integrasi penimbangan ke sistem otomasi apa pun menjadi lebih mudah dan aman.

  • Easy to use 5-key waterproof keyboard.
  • Highly efficient red LED display with 6 20-mm digits and 6 LEDs for showing active functions.
  • Case for panel mounting. Dimensions: 143,5 x 72 x 129mm(lxhxw). Drill template: 136,5 x 67,5 x 140mm (lxhxw).
  • A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
  • Management of a digitally equalised 4-cell weighing system or management of 4 independent weighing systems.
  • Connectable with up to 16 analogue load cells with 350 Ohm input resistance.
  • Up to 1.000.000 displayable divisions with internal resolution up to 3.000.000 points.
  • Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS.
  • Up to 8 signal linearization points with DINITOOLS (3 from keypad).
  • Fitted real time clock.
  • From 12 Vdc to 24 Vdc power supply.
  • 1 RS232/C or RS485 bidirectional port configurable for connection to PC or external units.
  • 1 RS232/C bidirectional port configurable for connection to printer.
  • PROFIBUS serial interface (DGTPPB model).
  • 6 photomosfet outputs: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
  • 4 optoisolator photocouplers inputs: 12+24 Vdc, 5 mA min 20 mA max, with configurable functions.
  • 16-bit analogue output (DGTPAN model) 4-20mA/ 0-5Vdc/ 0-10Vdc at choice. Maximum load applicable on the output current: 3000hm.
  • Minimum load applicable on the output voltage: 1kOhm.
