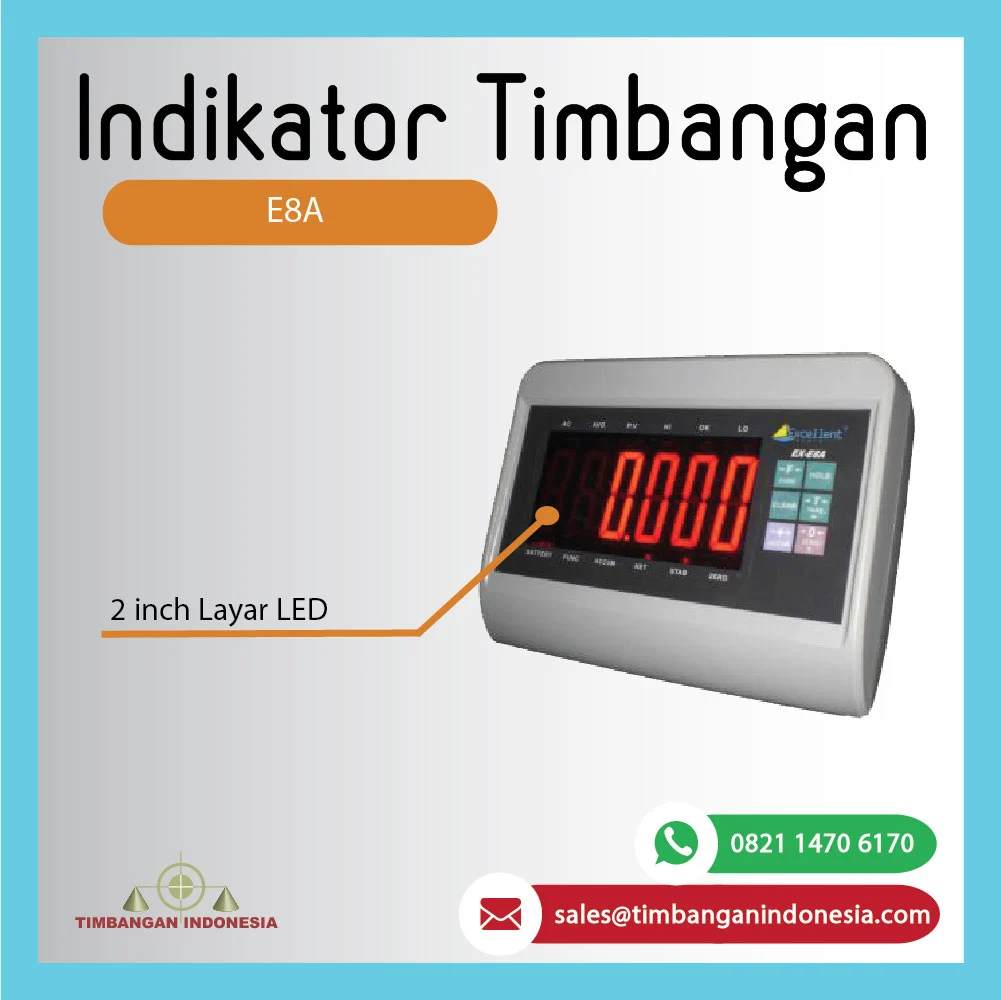

• Single window with 2 inch height highlight LED display, The real “BIG EYES”
• Peak value holding ( for testing device )
• Average value holding ( for animal weighing )
• Auto/manual accumulate
• Four grades battery indication, low power alarm, and auto power off
• High – Low limits alarm function, with HIGH – OK – LOW indications
• Auto sleep function
• Preset Tare
• High precision A/D conversion with readability 1/30000
• AC/DC power supply with built-in rechargeable 6V/4Ah battery
• RS- 232 interface with selectable baud rate (communication to PC and score board RS232 way)
• With score board communication interface 20mA current loop way
• Optional software weight management “ Genweigh ”
• Optional relay 3 output board ( for Tower lamp 3 color + buzzer or applied for semi automatic weighing system )

TECHNICAL PARAMETER :

• Precision grade: 3 grades
• Max. division: 30000
• Input signal range: -19mV ~ +19mV
• Conversion rate more than 10 times/sec.
• Non linear ≤0.0015%
• Max.connection number of load cell: 4 at 350 ohm
• Load cell connection mode: 6 wire
• Division: 1/2/5/10/20/50 (selectable)
• Score board interface (standard):
  • Serial sending signal by current loop with baud rate 600
  • Transmission distance: ≤ 200 meters
• Serial communication interface (RS -232 C standard)
  • Transmission distance:  ≤ 30 meters
  • Baud rate: 600/1200/2400/4800/9600
